End Mills / 134N

Solid Carbide TuffCut® AL 3 Flute End Mill Neck Relief
Ideal for rapid stock removal in aluminum and aluminum alloys
Chipbreaker design.
  • 3 flute
  • Solid carbide
  • Chipbreaker design
  • Uncoated
  • Square end
  • Improved chip flow prevents chips packing in flute
  • Center cutting
  • Stub flute length
  • Neck relief
  • 45° Helix angle
  • For roughing with chipbreaker applications
  • Material Applications: Non-Ferrous

Product Range

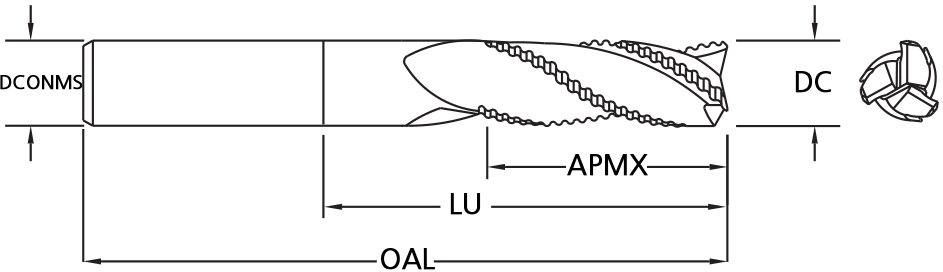

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Corner Radius (RE) NOF RH Coating Center Cutting
.7500 13475000N2.750 20114 3/4 3/4 4 1 2-3/4 3 Uncoated 1
.7500 13475000N1.250 20437 3/4 3/4 4 1 1-1/4 3 Uncoated 1
.7500 13475000N2.650 20498 3/4 3/4 4 1 2-13/20 3 Uncoated 1
