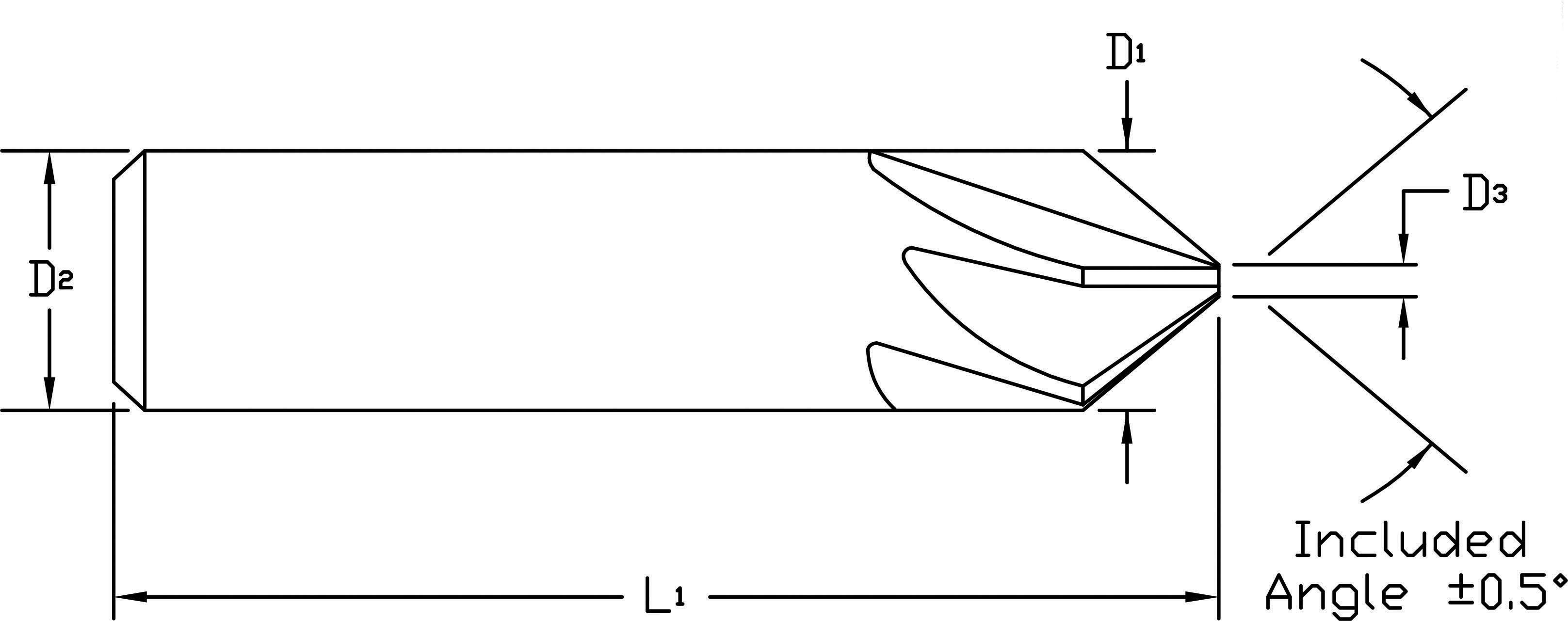

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x120° TiN drawing M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x120° TiN drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

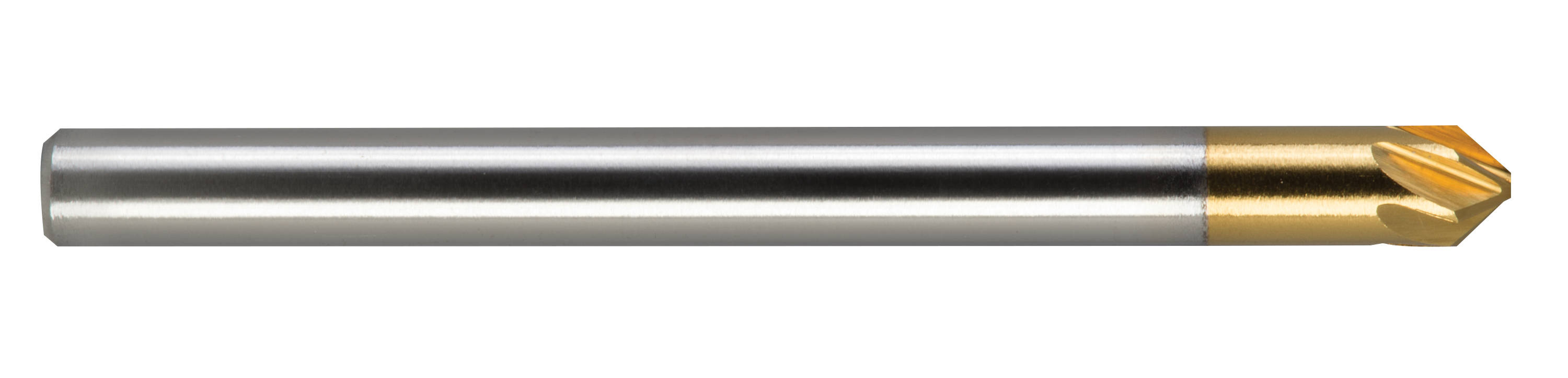

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x120° TiN

Product Id: 79T025006
EDP: 79092

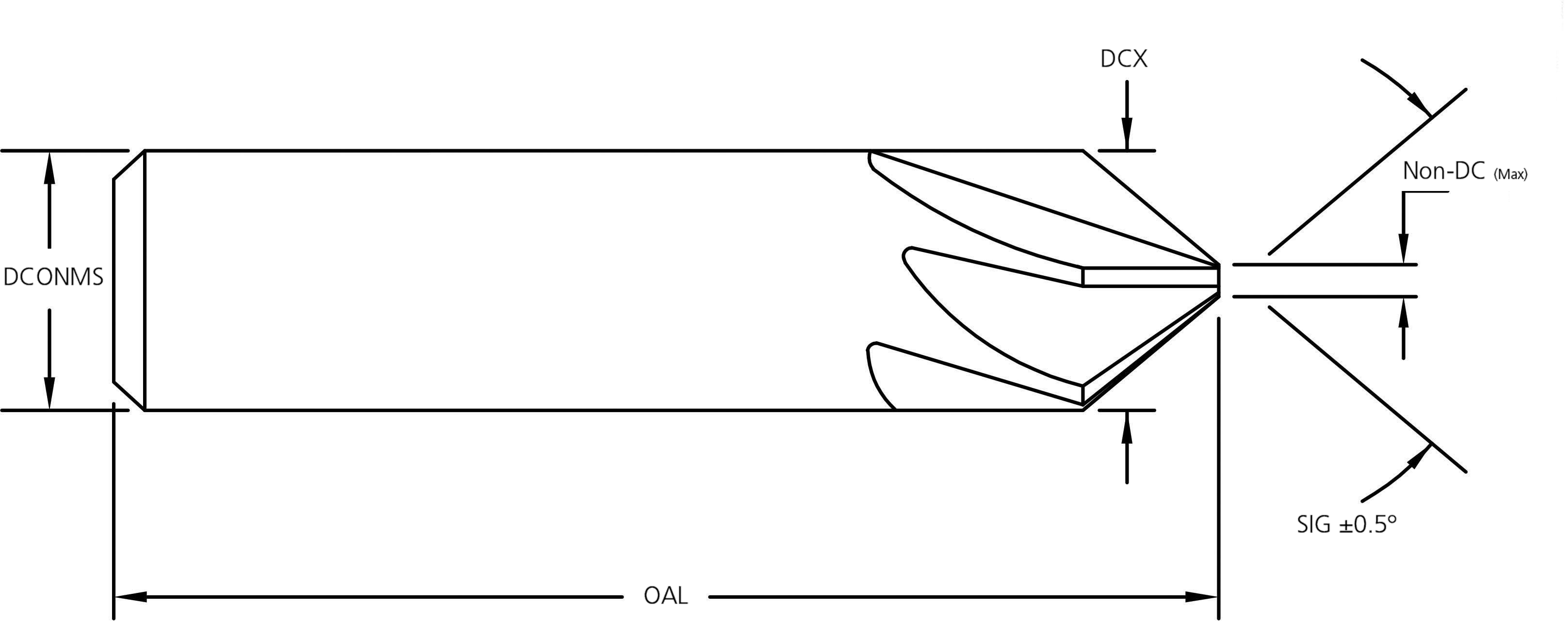

Sizes

Diameter (DCX)1/4
Diameter Dec.2500
Overall Length (OAL)2
Overall Length Dec2.0000
Shank Diameter (DCONMS)1/4
Shank Diameter Dec.2500

Specifications

CoatingTiN
Country of OriginUSA
Included Angle (SIG)120°
MaterialHSS
Non-Cutting Tip Dia Max (NON-DC MAX).060
Non-Cutting Tip Dia Max Dec.060
NOF RH6
PackageLength2.3110
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameM.A.FORDMAX®
Weight0.0190
List Price: $17.31
Available: 55
