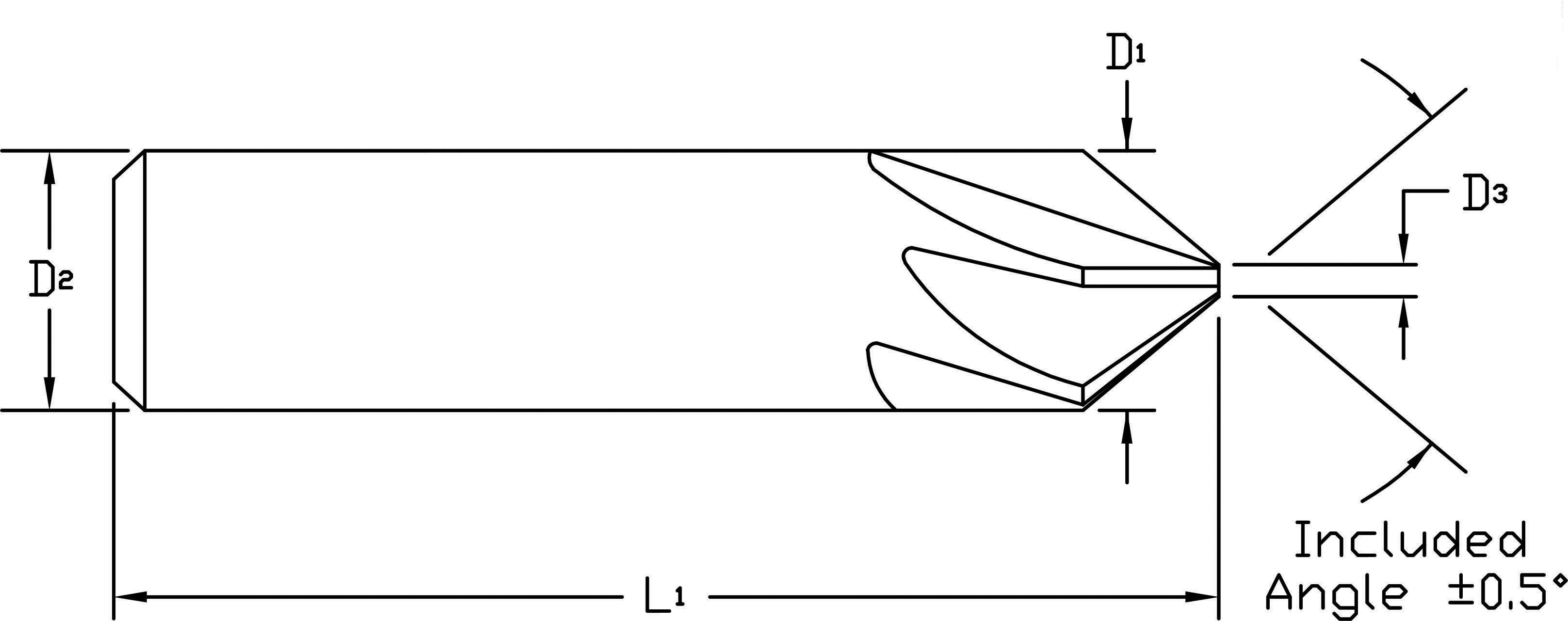

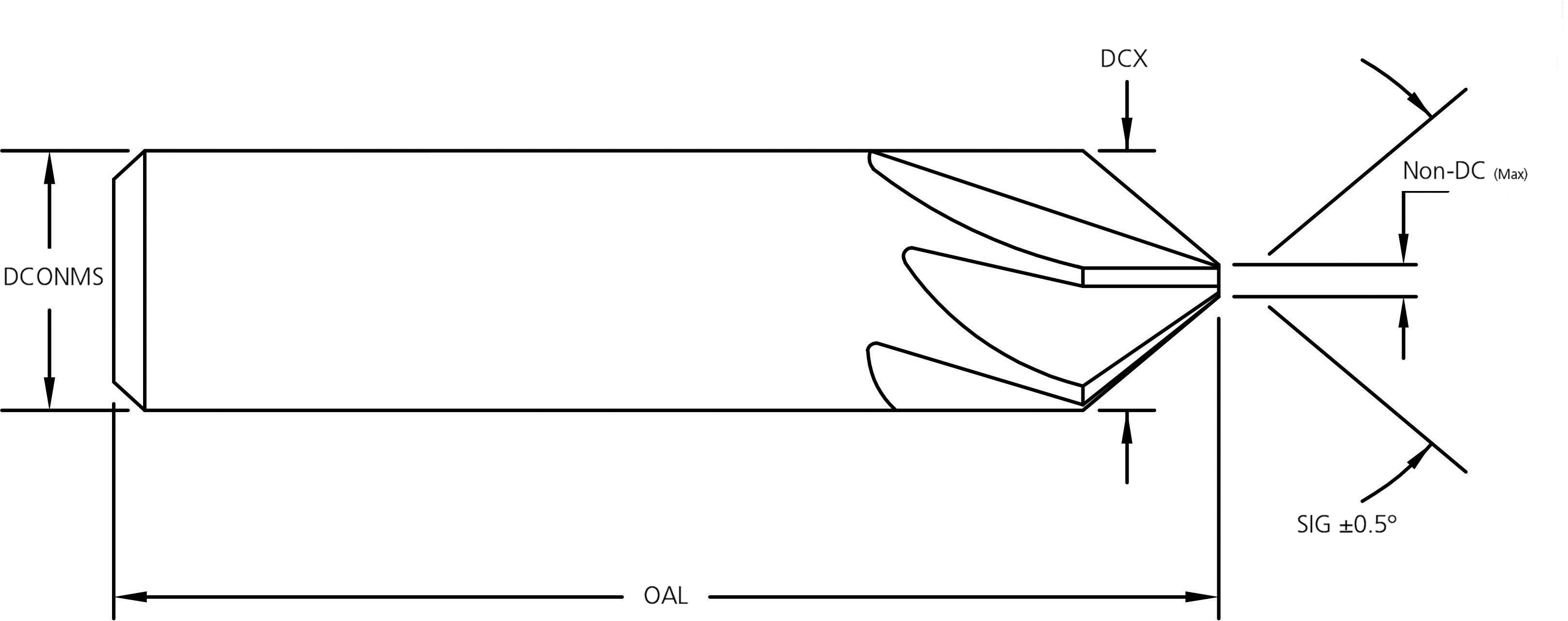

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x60° TiN drawing M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x60° TiN drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

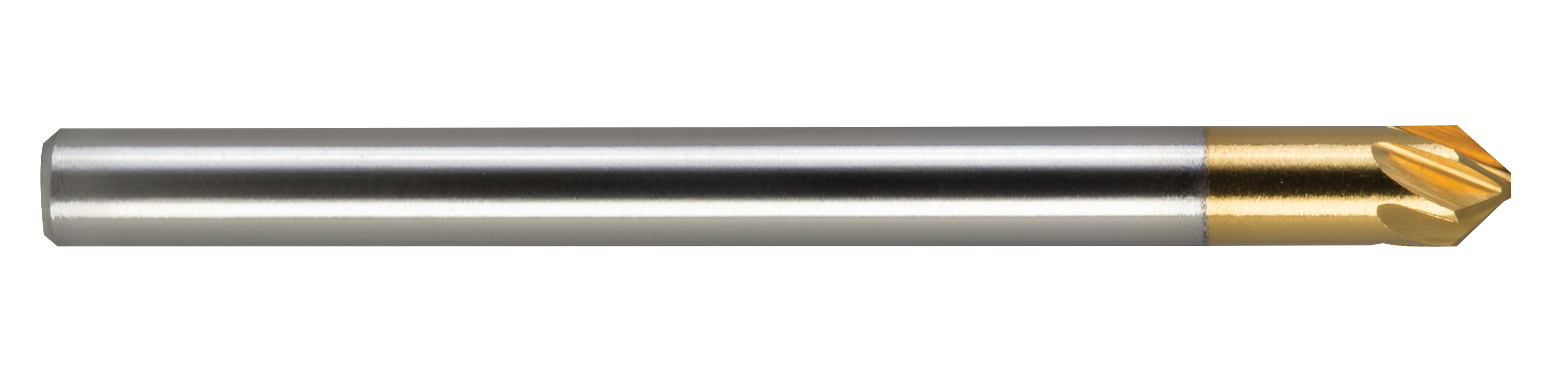

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x60° TiN

Product Id: 79T025001
EDP: 79072

Sizes

Diameter (D/D1)1/4
Diameter Dec.2500
Overall Length (L1)2
Overall Length Dec2.0000
Shank Diameter (D2)1/4
Shank Diameter Dec.2500

Specifications

CoatingTiN
Country of OriginUSA
Included Angle (A)60°
MaterialHSS
Non-Cutting Tip Dia Max (D3).060
Non-Cutting Tip Dia Max Dec.060
# Flutes RH6
PackageLength2.3110
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameM.A.FORDMAX®
Weight0.0190
List Price: $16.03
Available: 411

Contact Us!

Our experts are here to help.

Local: 563.391.6220
USA: 800.553.8024
Email: sales@maford.com

Series Attributes

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 1/4x60° TiN attributes

Downloads
