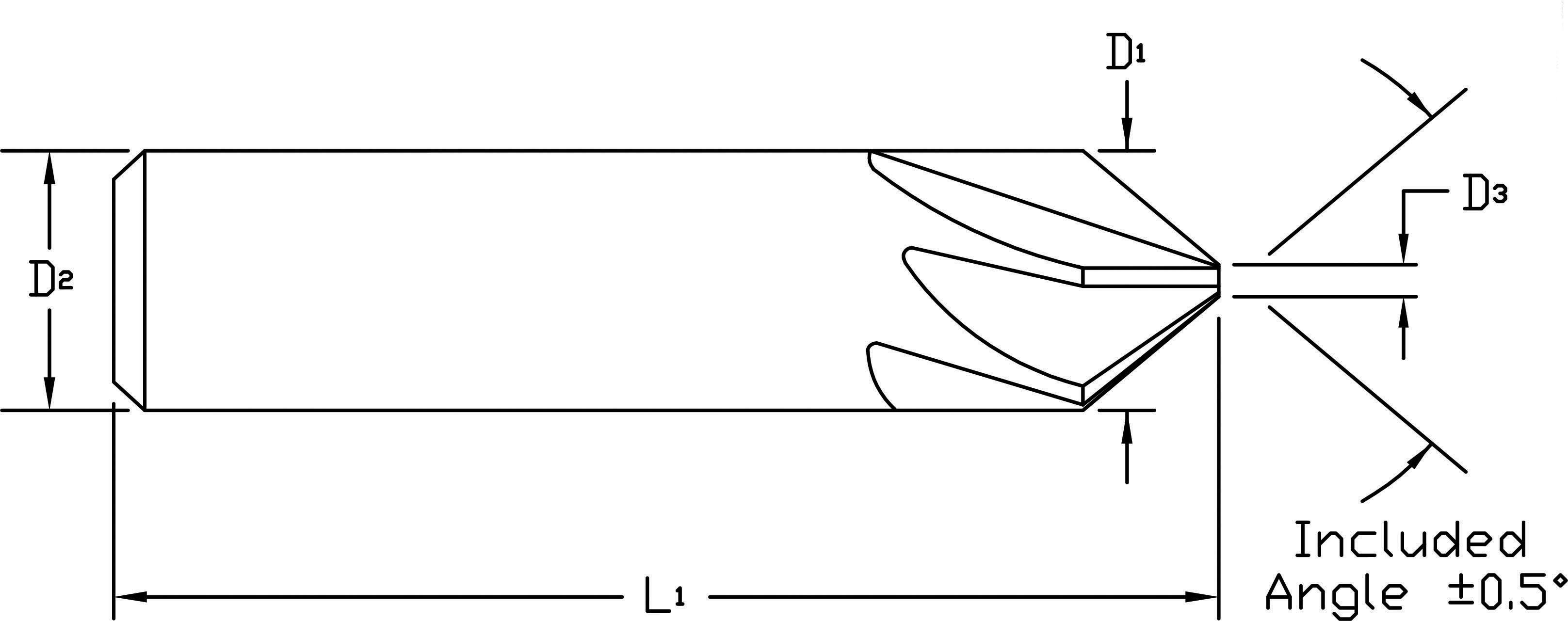

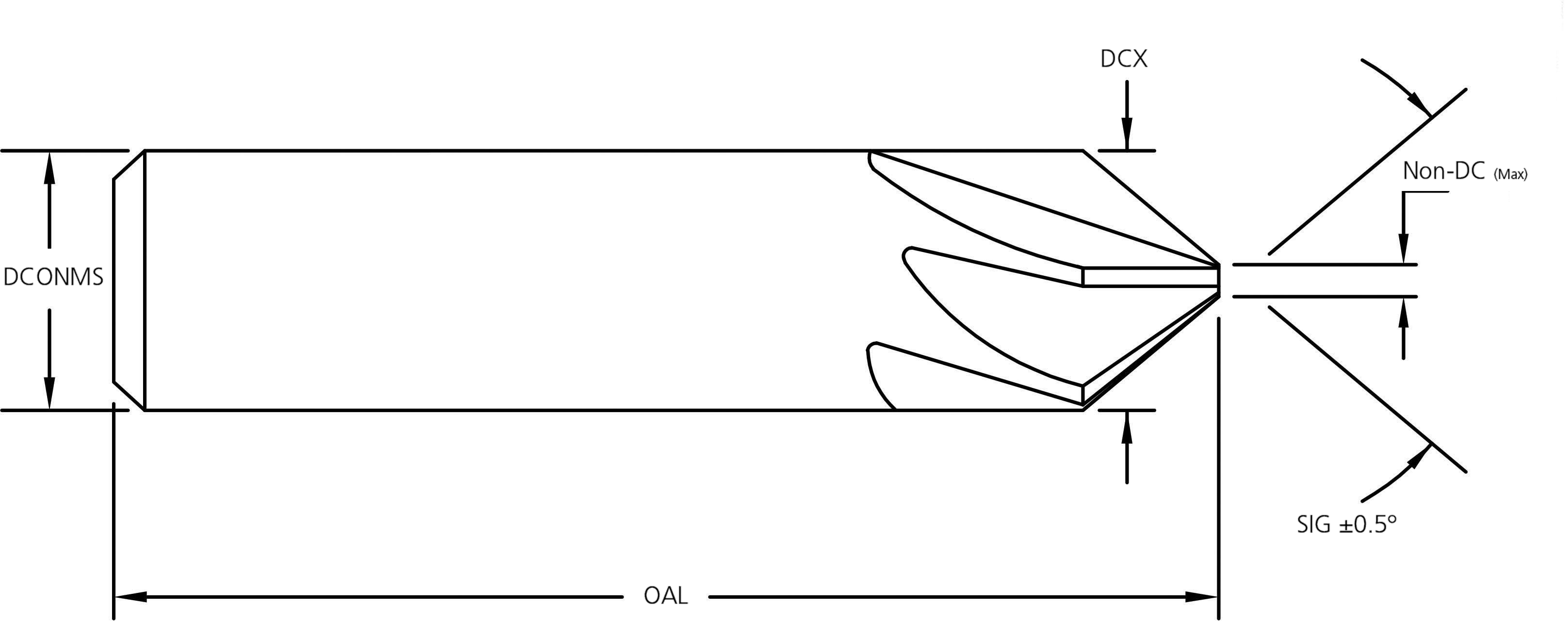

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 3/16 x 82° drawing M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 3/16 x 82° drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

M.A.Ford® M.A.FORDMAX® HSS 6 Fl C'Sink 3/16 x 82°

Product Id: 79018702
EDP: 79051

Sizes

Diameter (D/D1)3/16
Diameter Dec.1875
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)3/16
Shank Diameter Dec.1875

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (A)82°
MaterialHSS
Non-Cutting Tip Dia Max (D3).040
Non-Cutting Tip Dia Max Dec.040
# Flutes RH6
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameM.A.FORDMAX®
Weight0.0080
List Price: $11.85
Available: 321
