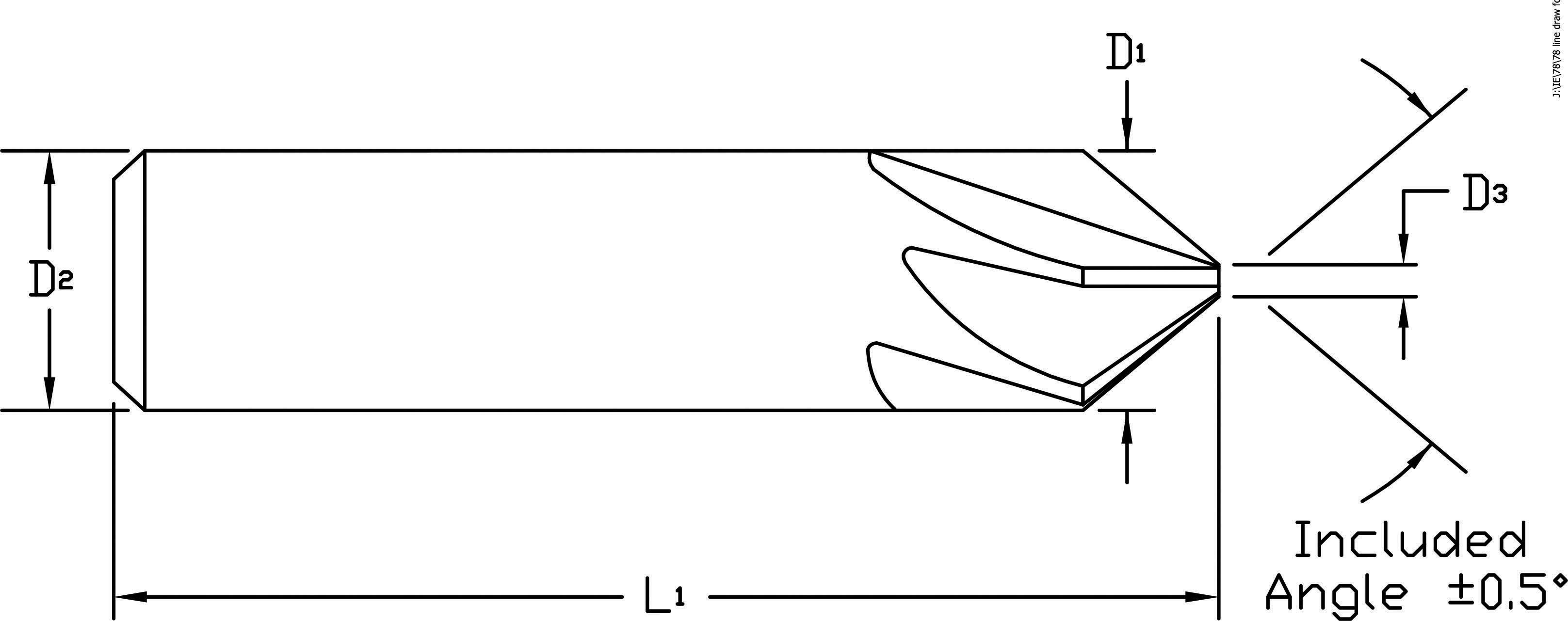

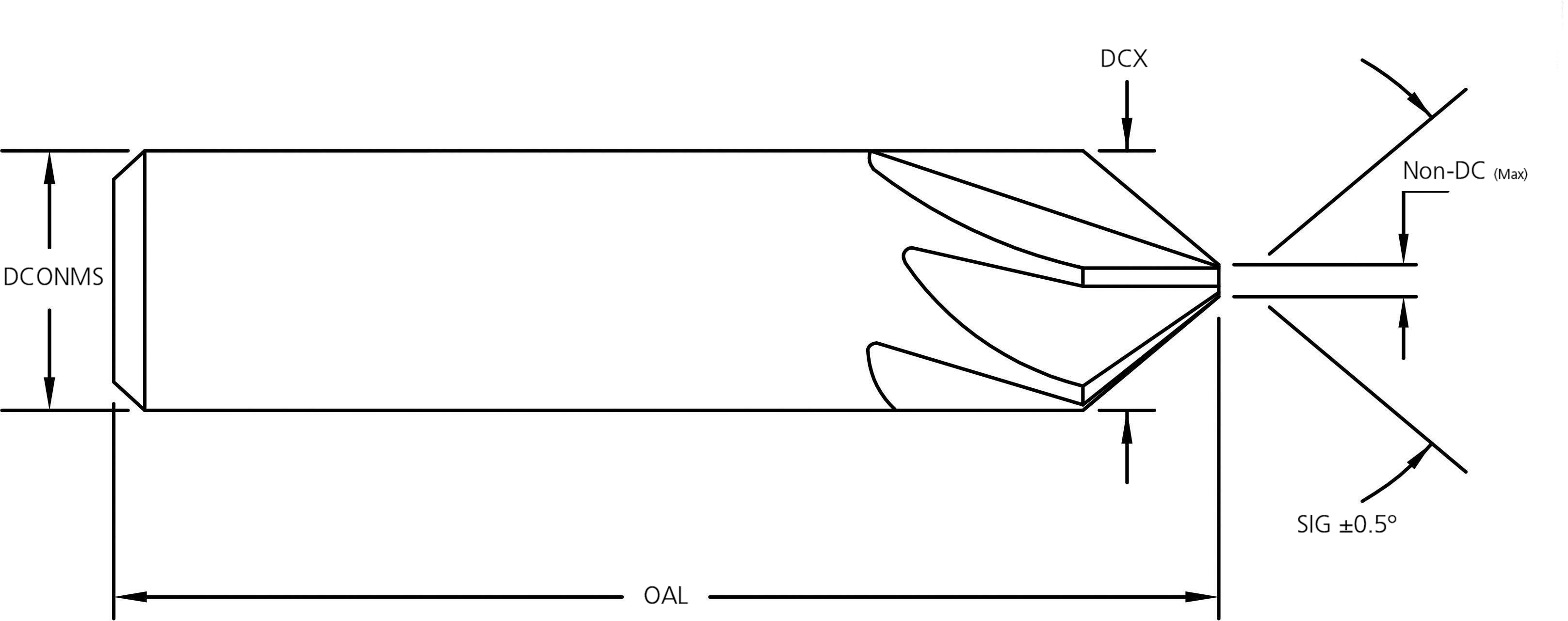

M.A.Ford® Carbide 6 Flute Countersink 1/4 x 120° drawing M.A.Ford® Carbide 6 Flute Countersink 1/4 x 120° drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

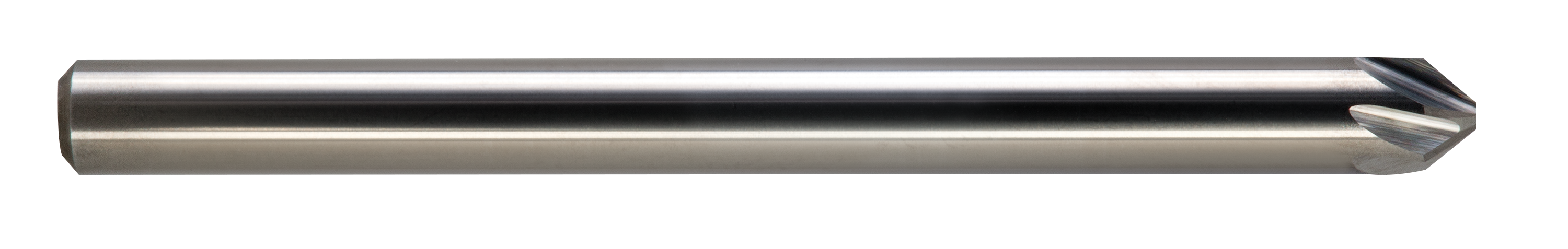

M.A.Ford® Carbide 6 Flute Countersink 1/4 x 120°

Product Id: 78025006
EDP: 78071

Sizes

Diameter (D/D1)1/4
Diameter Dec.2500
Overall Length (L1)2
Overall Length Dec2.0000
Shank Diameter (D2)1/4
Shank Diameter Dec.2500

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (A)120°
MaterialCarbide
Non-Cutting Tip Dia Max (D3).060
Non-Cutting Tip Dia Max Dec.060
# Flutes RH6
PackageLength2.3110
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Weight0.0190
List Price: $26.18
Available: 368
