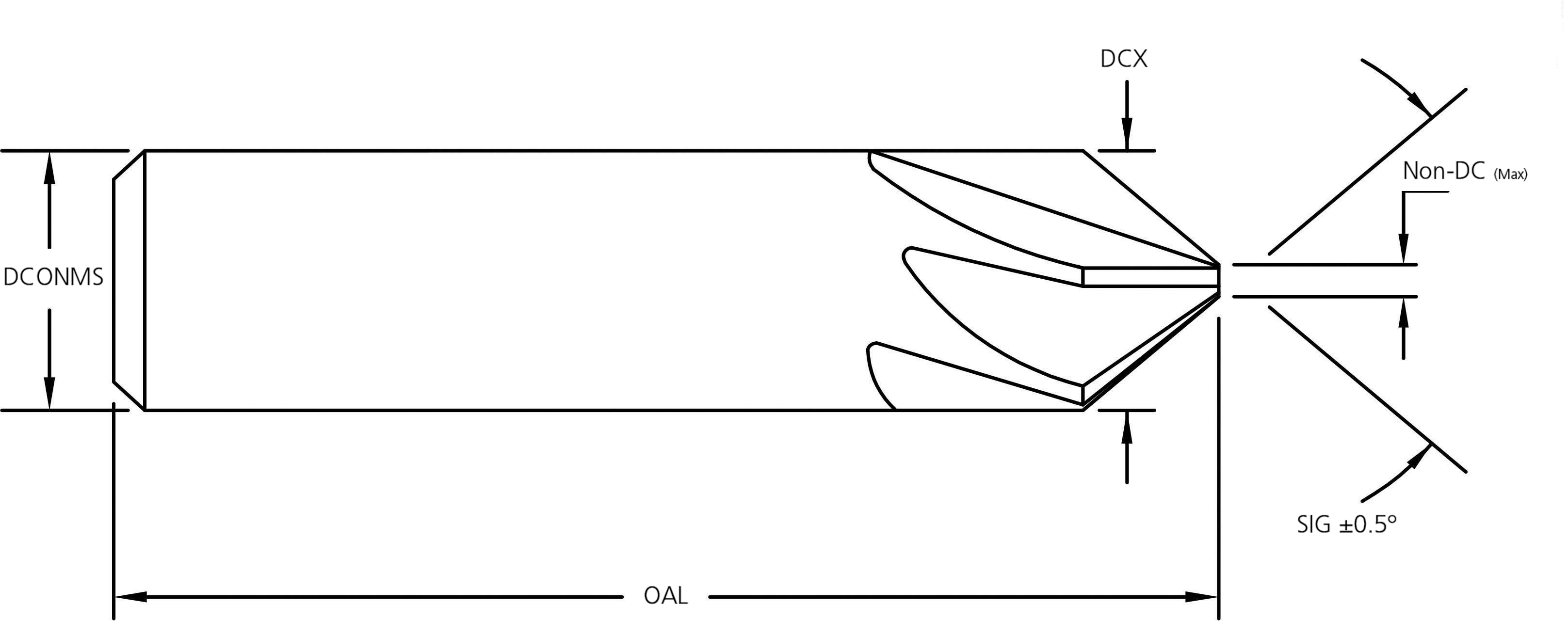

M.A.Ford® Carbide 6 Flute Countersink 3/16x100° ALtima® drawing M.A.Ford® Carbide 6 Flute Countersink 3/16x100° ALtima® drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

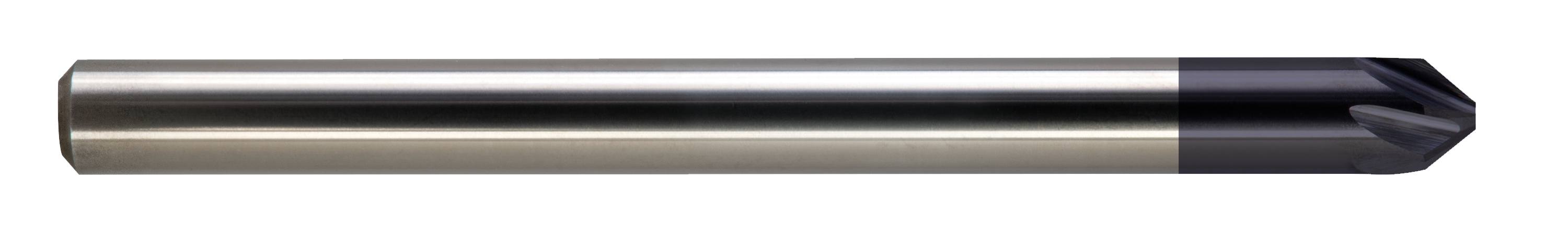

M.A.Ford® Carbide 6 Flute Countersink 3/16x100° ALtima®

This tool is non-stock and not returnable

Product Id: 78018704A
EDP: 76850

Sizes

Diameter (DCX)3/16
Diameter Dec.1875
Overall Length (OAL)1-1/2
Overall Length Dec1.5000
Shank Diameter (DCONMS)3/16
Shank Diameter Dec.1875

Specifications

CoatingALtima®
Country of OriginUSA
Included Angle (SIG)100°
MaterialCarbide
Non-Cutting Tip Dia Max (NON-DC MAX).040
Non-Cutting Tip Dia Max Dec.040
NOF RH6
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Weight0.08
List Price: $45.30
Available: Contact Customer Service
