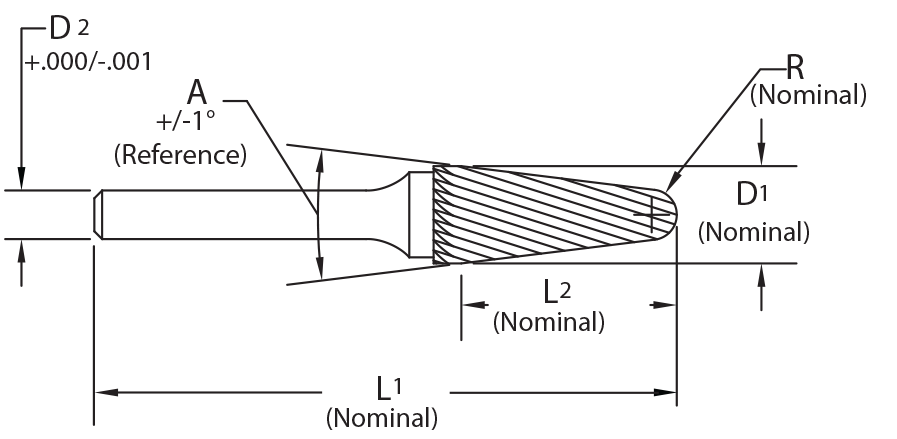

M.A.Ford® Edge Hog® Miniature Bur 4.80mmx12.70x38 SL-53M drawing M.A.Ford® Edge Hog® Miniature Bur 4.80mmx12.70x38 SL-53M drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

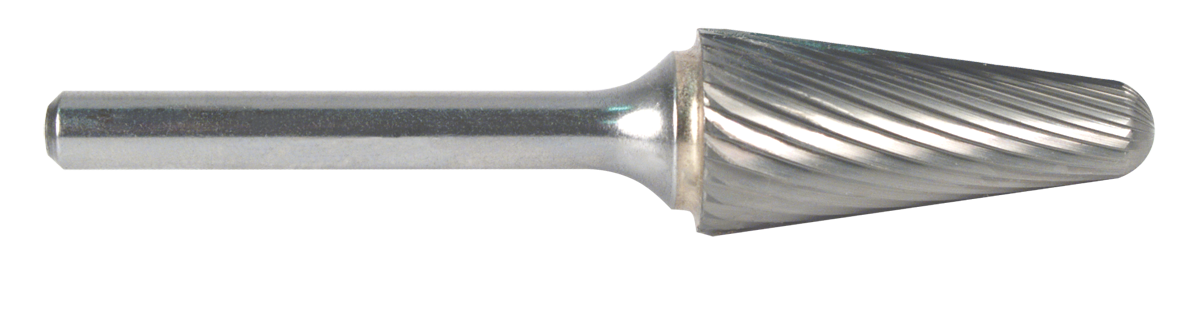

M.A.Ford® Edge Hog® Miniature Bur 4.80mmx12.70x38 SL-53M

Product Id: 72120020M
EDP: 72269

Sizes

Diameter (DC)4.8mm
Diameter Dec.1890
Flute Length (APMX)12.7mm
Flute Length Dec.5000
Overall Length (OAL)38mm
Overall Length Dec1.4961
Shank Diameter (DCONMS)3mm
Shank Diameter Dec.1181

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (SIG)14°
MaterialCarbide
NOF RH15
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Radius (RE)0.76mm
Radius Dec.030
Shank TypeStraight
SpecificationSL-53M
Tool ConstructionSolid
Trade NameEdge Hog®
Type of CutSingle
Weight0.01265491
List Price: $31.10
Available: 29

Contact Us!

Our experts are here to help.

Local: 563.391.6220
USA: 800.553.8024
Email: sales@maford.com

Series Attributes

M.A.Ford® Edge Hog® Miniature Bur 4.80mmx12.70x38 SL-53M attributes
