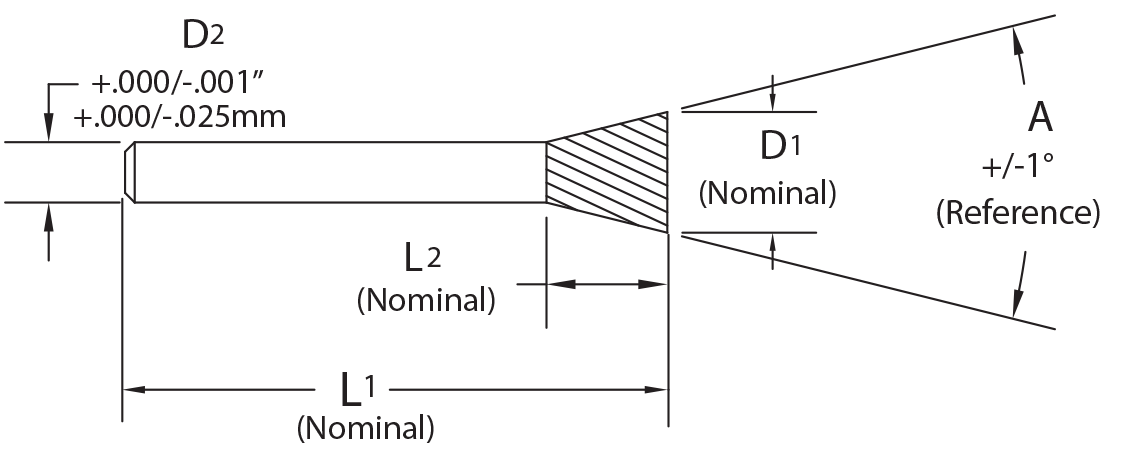

M.A.Ford® Edge Hog® Miniature Bur 3/16x1/4x1-1/2 SN-53-F EC drawing M.A.Ford® Edge Hog® Miniature Bur 3/16x1/4x1-1/2 SN-53-F EC drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

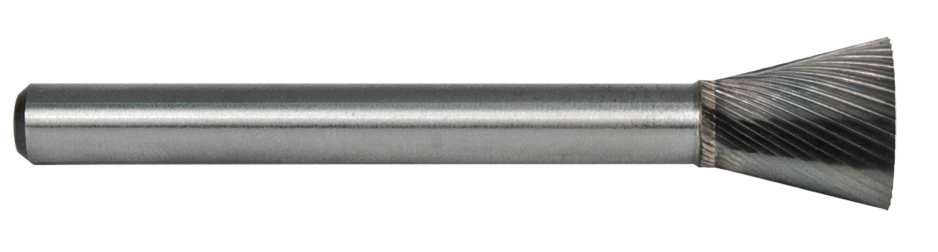

M.A.Ford® Edge Hog® Miniature Bur 3/16x1/4x1-1/2 SN-53-F EC

Product Id: 72110030E
EDP: 76800

Sizes

Diameter (D/D1)3/16
Diameter Dec.1875
Flute Length (L2)1/4
Flute Length Dec.2500
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)1/8
Shank Diameter Dec.1250

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (A)10°
MaterialCarbide
# Flutes RH24
PackageLength2.3110
PackageWidth0.3937
Shank TypeStraight
SpecificationSN-53-F EC
Tool ConstructionSolid
Trade NameEdge Hog®
Type of CutFine EC
Weight0.01169732
List Price: $41.04
Available: 3

Contact Us!

Our experts are here to help.

Local: 563.391.6220
USA: 800.553.8024
Email: sales@maford.com

Series Attributes

M.A.Ford® Edge Hog® Miniature Bur 3/16x1/4x1-1/2 SN-53-F EC attributes
