This tool is non-stock and not returnable
Product Id: 72090037M
EDP: 76786

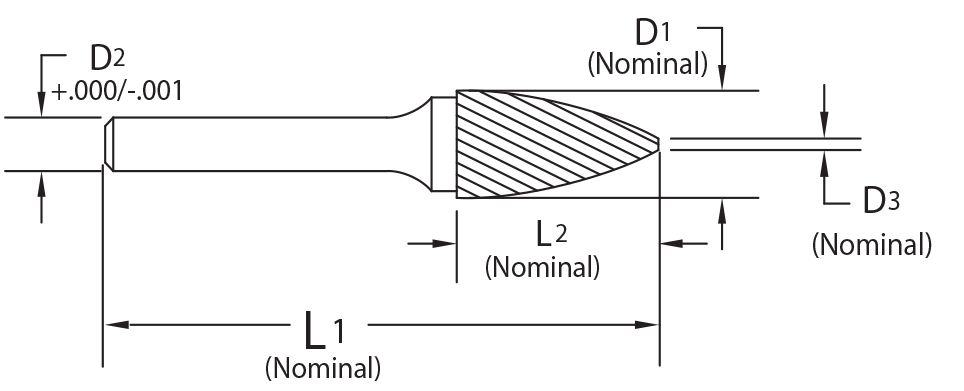

Sizes
| Diameter (D/D1) | 4.8mm |
|---|
| Diameter Dec | .1890 |
|---|
| Flute Length (L2) | 12.7mm |
|---|
| Flute Length Dec | .5000 |
|---|
| Overall Length (L1) | 38mm |
|---|
| Overall Length Dec | 1.4961 |
|---|
| Shank Diameter (D2) | 3mm |
|---|
| Shank Diameter Dec | .1181 |
|---|
Specifications
| Coating | Uncoated |
|---|
| Country of Origin | USA |
|---|
| End Diameter (D3) | 0.64mm |
|---|
| End Diameter Dec | .025 |
|---|
| Material | Carbide |
|---|
| # Flutes LH | 10 |
|---|
| # Flutes RH | 24 |
|---|
| PackageLength | 2.3110 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Specification | SG-53M-F Alt Diam |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | Edge Hog® |
|---|
| Type of Cut | Fine Alternate Diamond |
|---|
| Weight | 0.01265491 |
|---|
