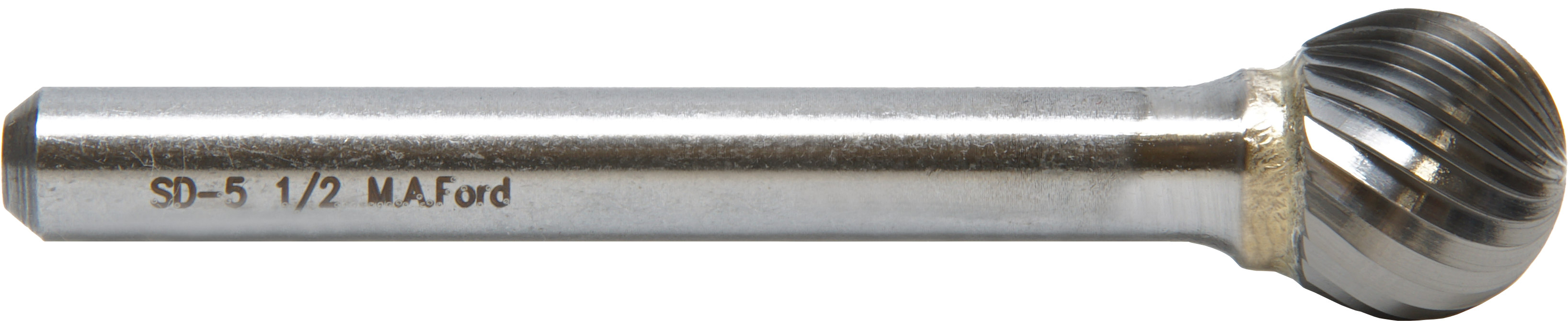

M.A.Ford® Edge Hog® Miniature Bur 6.40mmx5.60x44 SD-51M-D

LOADING IMAGES

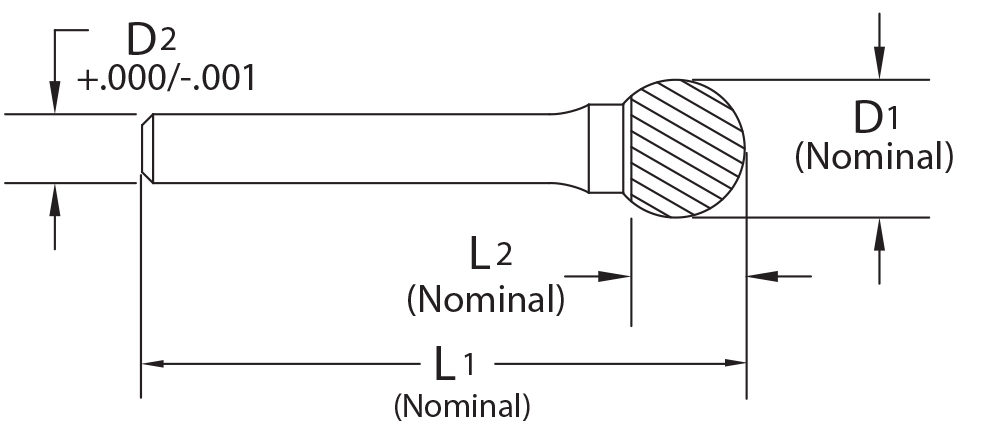

M.A.Ford® Edge Hog® Miniature Bur 6.40mmx5.60x44 SD-51M-D drawing

Materials

M.A.Ford® Edge Hog® Miniature Bur 6.40mmx5.60x44 SD-51M-D

Product Id: 70030027M
EDP: 70073

Sizes

Diameter (D/D1)	6.4mm
Diameter Dec	.2520
Flute Length (L2)	5.6mm
Flute Length Dec	.2205
Overall Length (L1)	44mm
Overall Length Dec	1.7323
Shank Diameter (D2)	3mm
Shank Diameter Dec	.1181

Specifications

Coating	Uncoated
Country of Origin	USA
Material	Carbide
# Flutes LH	6
# Flutes RH	16
PackageLength	2.3110
PackageWidth	0.3937
Shank Type	Straight
Specification	SD-51M-D
Tool Construction	Brazed
Trade Name	Edge Hog®
Type of Cut	Double Cut
Weight	0.01431381

List Price: $18.97

Available: 174

Contact Us!

Our experts are here to help.

Local: 563.391.6220

USA: 800.553.8024

Email: sales@maford.com

Series Attributes

M.A.Ford® Edge Hog® Miniature Bur 6.40mmx5.60x44 SD-51M-D attributes

Downloads

Speed/feed and bur type of cut and applications data

Line Drawing
