This tool is non-stock and not returnable
Product Id: 60025001TIN
EDP: 76446

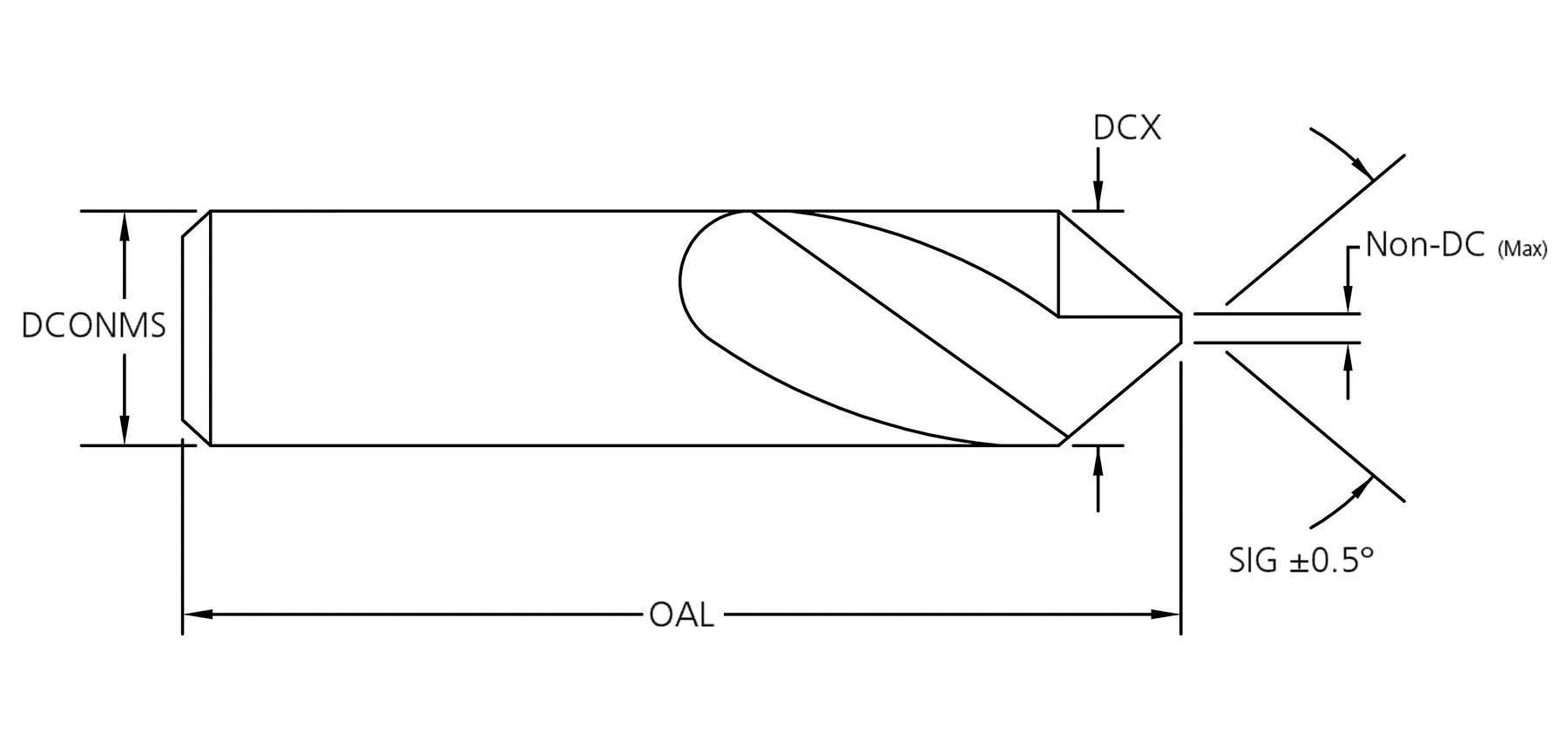

Sizes
| Diameter (DCX) | 1/4 |
|---|
| Diameter Dec | .2500 |
|---|
| Overall Length (OAL) | 2 |
|---|
| Overall Length Dec | 2.0000 |
|---|
| Shank Diameter (DCONMS) | 1/4 |
|---|
| Shank Diameter Dec | .2500 |
|---|
Specifications
| Coating | TiN |
|---|
| Country of Origin | USA |
|---|
| Fastener Size | #4 |
|---|
| Included Angle (SIG) | 60° |
|---|
| Material | Carbide |
|---|
| Non-Cutting Tip Dia Max (NON-DC MAX) | .045 |
|---|
| Non-Cutting Tip Dia Max Dec | .045 |
|---|
| NOF RH | 1 |
|---|
| PackageLength | 2.3110 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | Uniflute® |
|---|
| Weight | 0.0337 |
|---|
