This tool is non-stock and not returnable
Product Id: 60018704C
EDP: 76445
Sizes

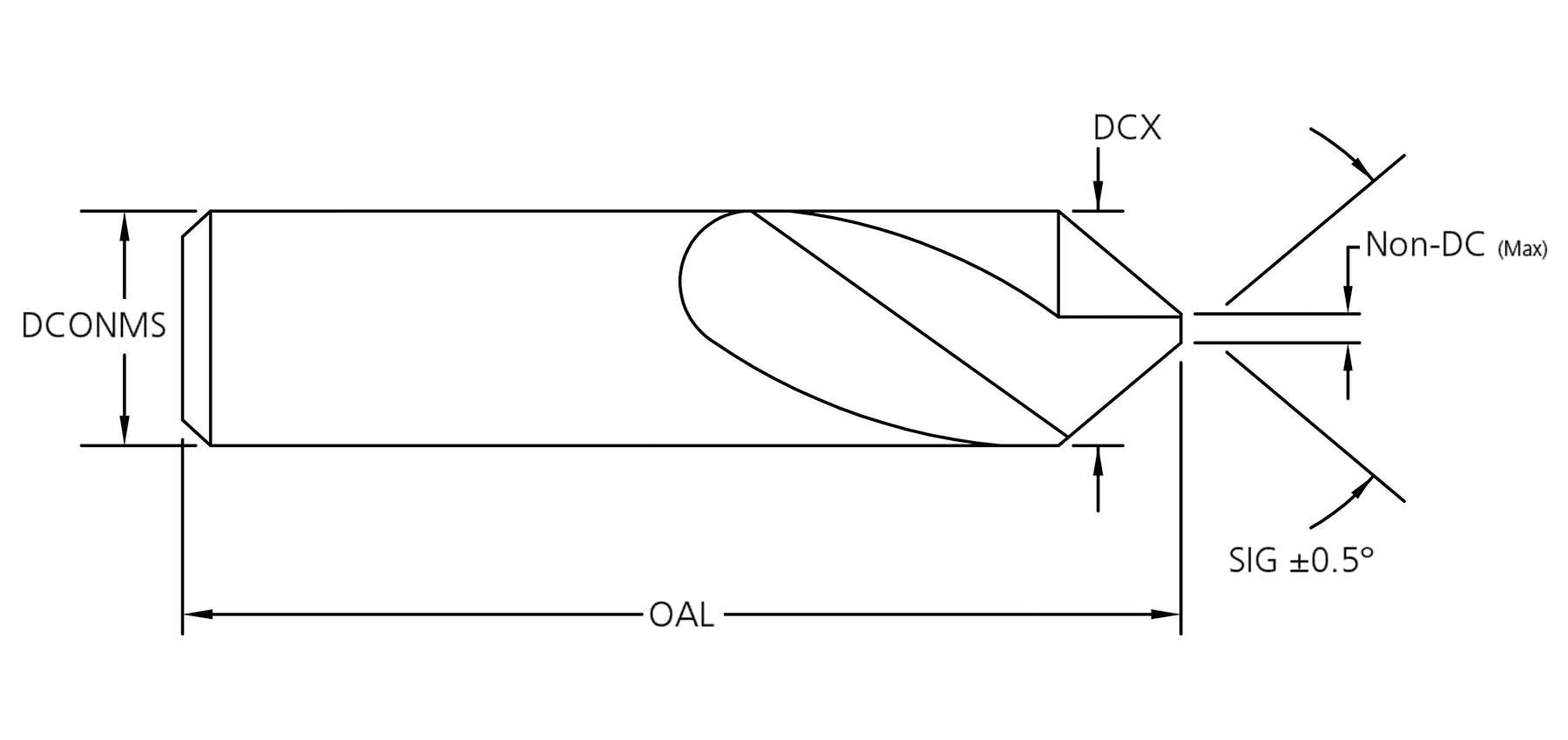

| Diameter (DCX) | 3/16 |
|---|
| Diameter Dec | .1875 |
|---|
| Overall Length (OAL) | 1-1/2 |
|---|
| Overall Length Dec | 1.5000 |
|---|
| Shank Diameter (DCONMS) | 3/16 |
|---|
| Shank Diameter Dec | .1875 |
|---|
Specifications
| Coating | TiCN |
|---|
| Country of Origin | USA |
|---|
| Included Angle (SIG) | 100° |
|---|
| Material | Carbide |
|---|
| Non-Cutting Tip Dia Max (NON-DC MAX) | .045 |
|---|
| Non-Cutting Tip Dia Max Dec | .045 |
|---|
| NOF RH | 1 |
|---|
| PackageHeight | 0.2992 |
|---|
| PackageLength | 1.7992 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | Uniflute® |
|---|
| Weight | 0.0142 |
|---|
