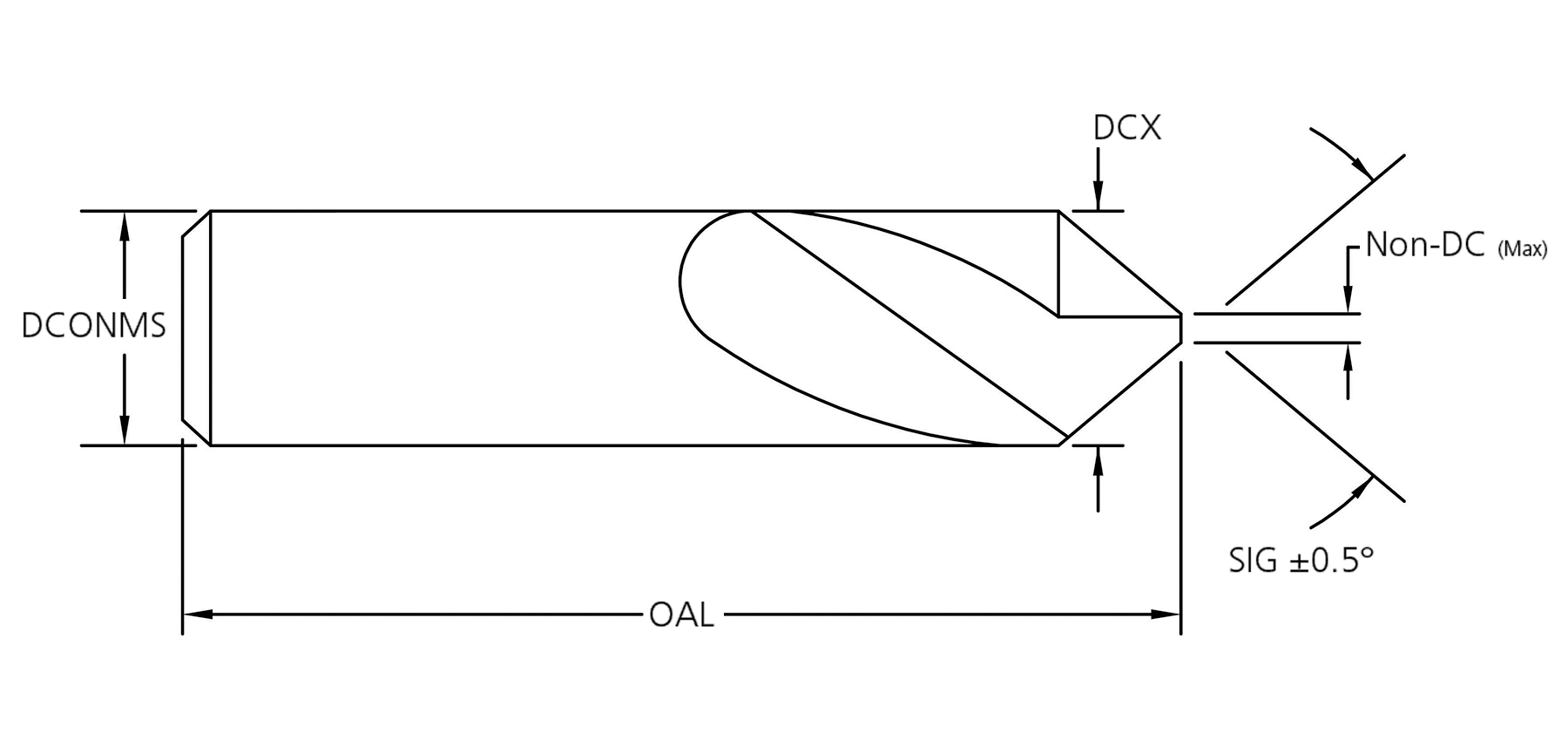

M.A.Ford® Carbide Uniflute® Countersink 3/16 x 90° drawing M.A.Ford® Carbide Uniflute® Countersink 3/16 x 90° drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

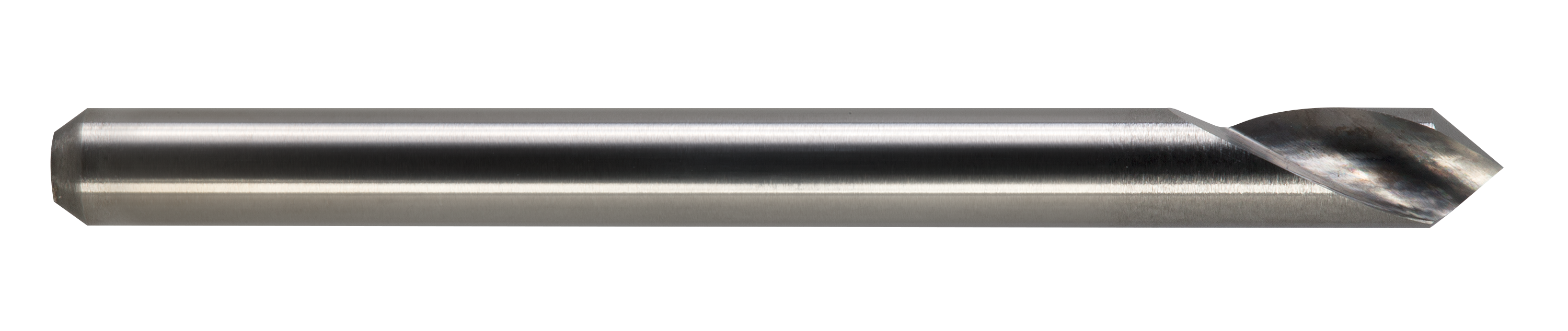

M.A.Ford® Carbide Uniflute® Countersink 3/16 x 90°

Product Id: 60018703
EDP: 60031

Sizes

Diameter (D/D1)3/16
Diameter Dec.1875
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)3/16
Shank Diameter Dec.1875

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (A)90°
MaterialCarbide
Non-Cutting Tip Dia Max (D3).045
Non-Cutting Tip Dia Max Dec.045
# Flutes RH1
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameUniflute®
Weight0.0142
List Price: $22.34
Available: 787
