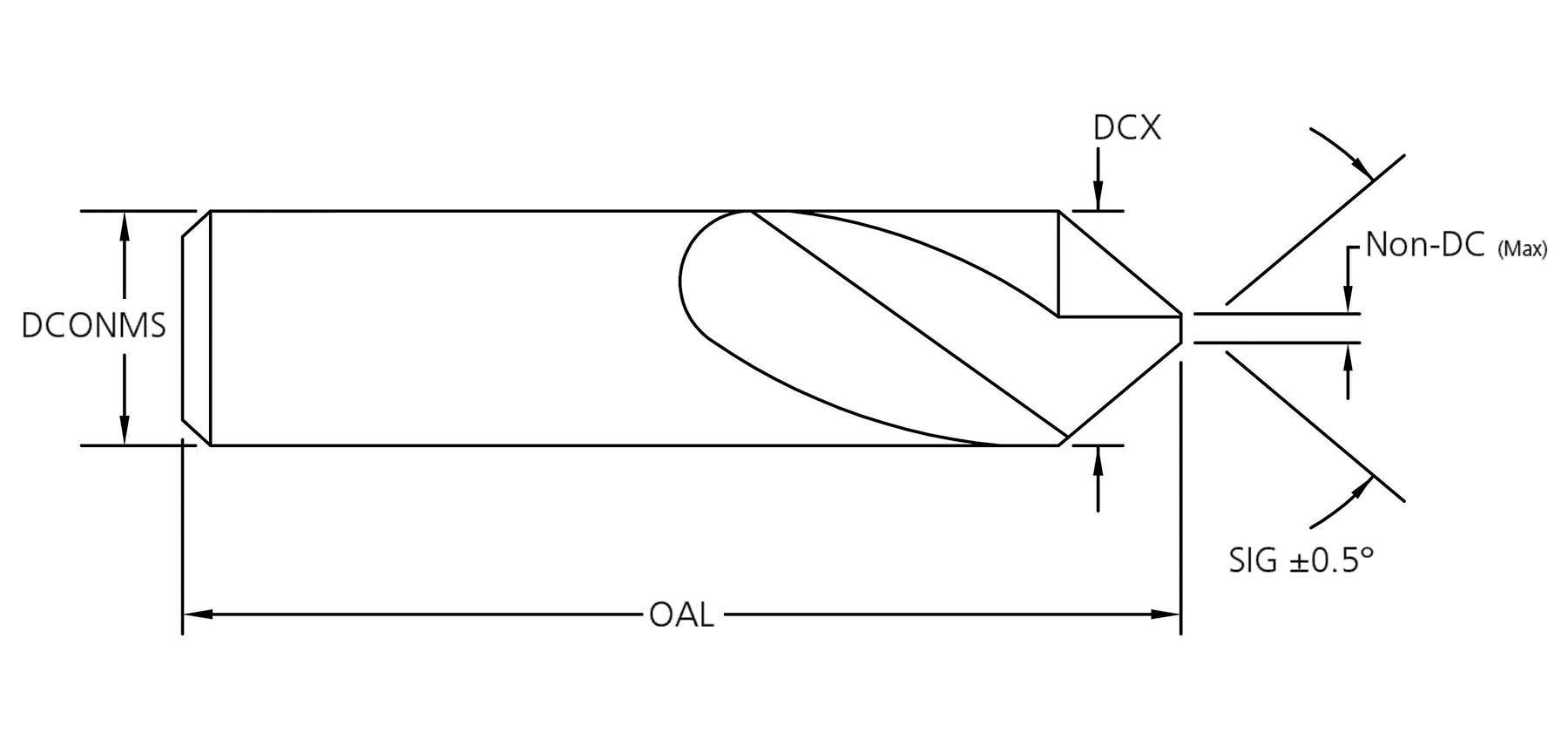

M.A.Ford® Carbide Uniflute® Countersink 1/8 x 100° drawing M.A.Ford® Carbide Uniflute® Countersink 1/8 x 100° drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

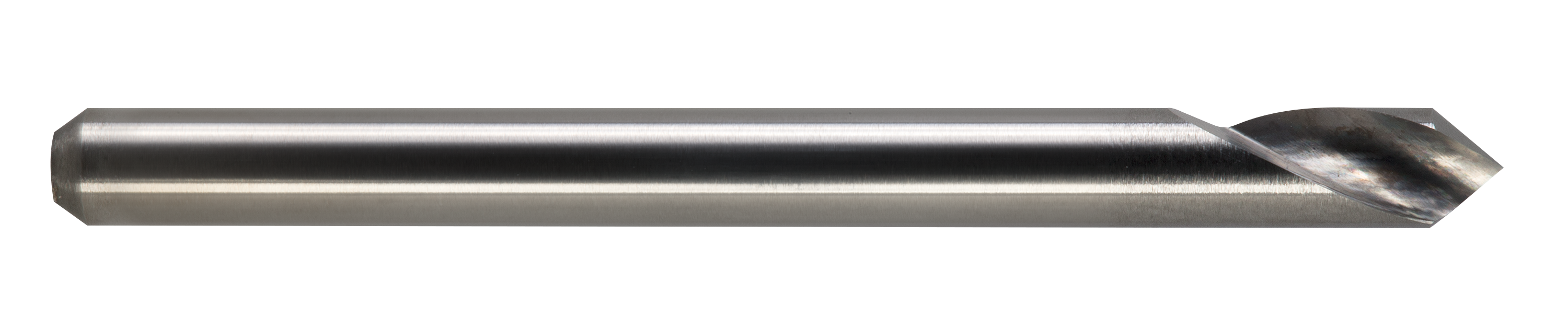

M.A.Ford® Carbide Uniflute® Countersink 1/8 x 100°

Product Id: 60012504
EDP: 60016

Sizes

Diameter (DCX)1/8
Diameter Dec.1250
Overall Length (OAL)1-1/2
Overall Length Dec1.5000
Shank Diameter (DCONMS)1/8
Shank Diameter Dec.1250

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (SIG)100°
MaterialCarbide
Non-Cutting Tip Dia Max (NON-DC MAX).015
Non-Cutting Tip Dia Max Dec.015
NOF RH1
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameUniflute®
Weight0.0063
List Price: $17.86
Available: 141

Contact Us!

Our experts are here to help.

Local: 563.391.6220
USA: 800.553.8024
Email: sales@maford.com

Series Attributes

M.A.Ford® Carbide Uniflute® Countersink 1/8 x 100° attributes
