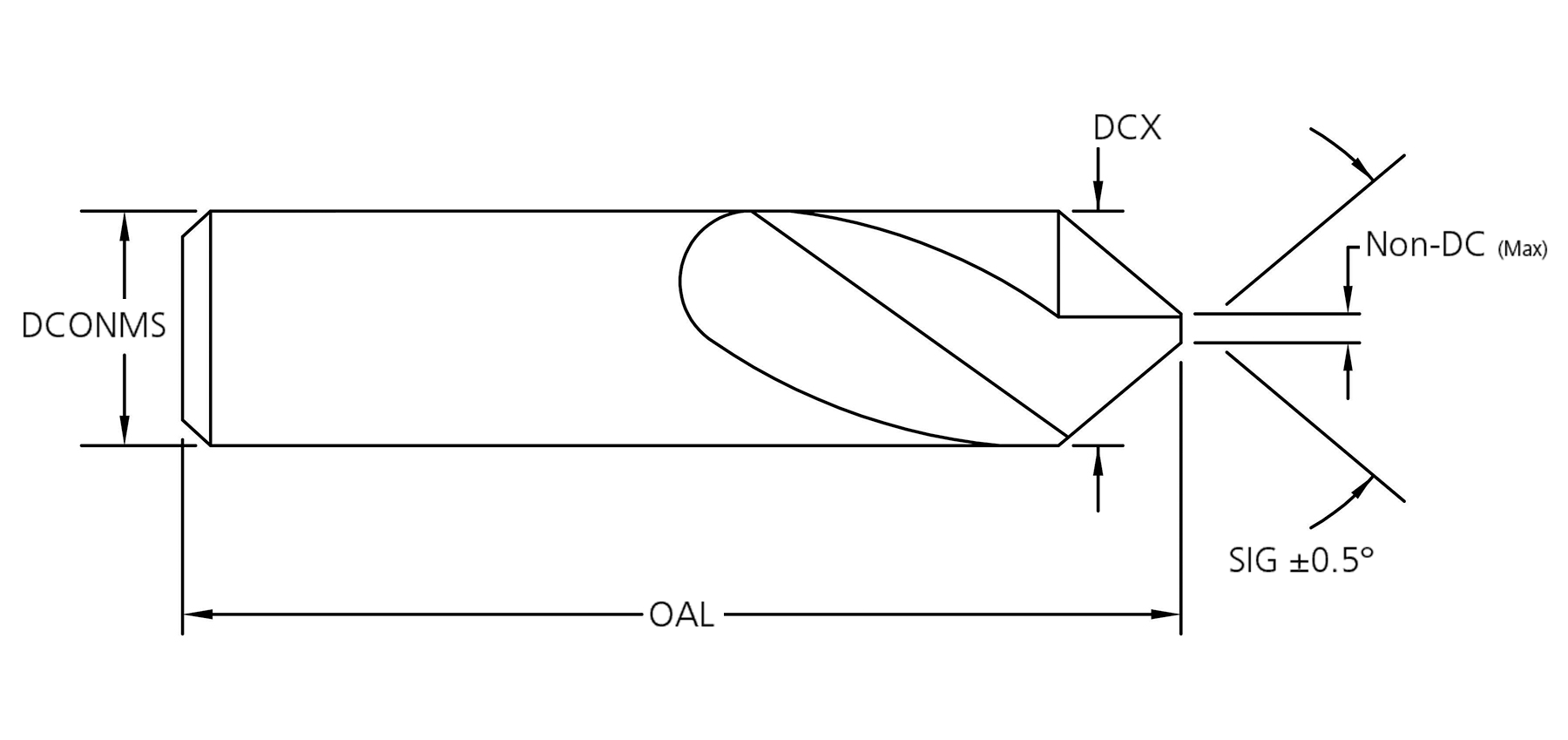

M.A.Ford® Carbide Uniflute® Countersink 1/8 x 90° drawing M.A.Ford® Carbide Uniflute® Countersink 1/8 x 90° drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

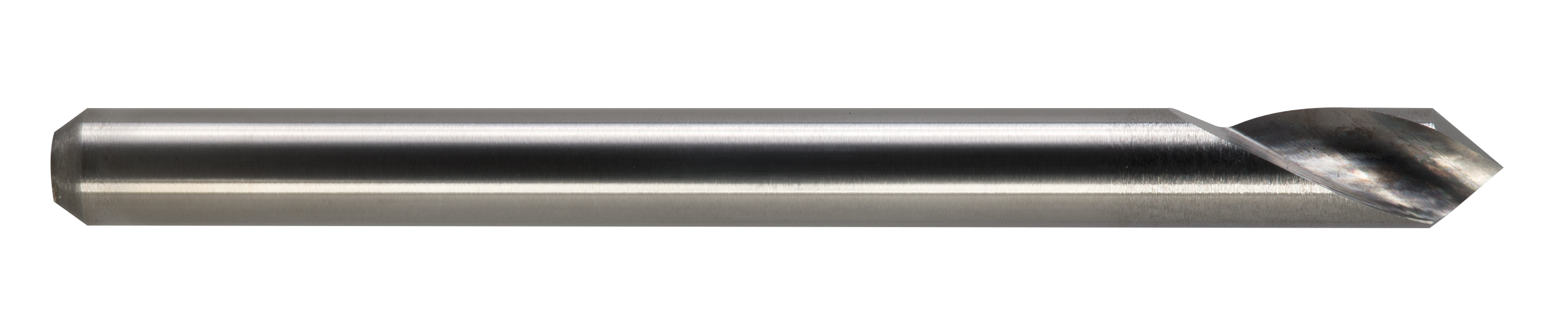

M.A.Ford® Carbide Uniflute® Countersink 1/8 x 90°

Product Id: 60012503
EDP: 60011

Sizes

Diameter (D/D1)1/8
Diameter Dec.1250
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)1/8
Shank Diameter Dec.1250

Specifications

CoatingUncoated
Country of OriginUSA
Included Angle (A)90°
MaterialCarbide
Non-Cutting Tip Dia Max (D3).015
Non-Cutting Tip Dia Max Dec.015
# Flutes RH1
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameUniflute®
Weight0.0063
List Price: $17.86
Available: 1,346
