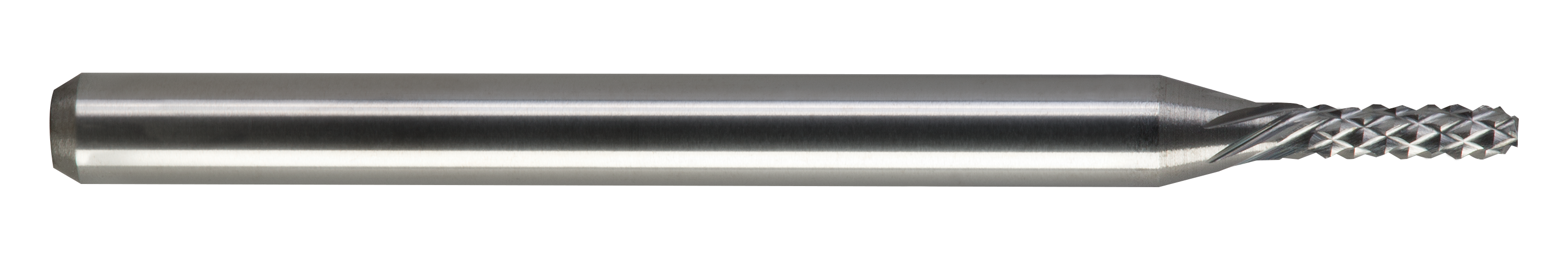

M.A.Ford® Diamond Grind Router Down Cut 1.20mmx4.0x38 End Mill

LOADING IMAGES

M.A.Ford® Diamond Grind Router Down Cut 1.20mmx4.0x38 End Mill drawing

Materials

M.A.Ford® Diamond Grind Router Down Cut 1.20mmx4.0x38 End Mill

Product Id: 23104720
EDP: 90949

Sizes

Diameter (DC)	1.2mm
Diameter Dec	.0472
Flute Length (APMX)	4mm
Flute Length Dec	.1575
Overall Length (OAL)	38mm
Overall Length Dec	1.4961
Shank Diameter (DCONMS)	3.175mm
Shank Diameter Dec	.1250

Specifications

Coating	Uncoated
Country of Origin	USA
End Grind	End Mill
Material	Carbide
NOF LH	7
NOF RH	5
PackageHeight	0.2992
PackageLength	1.7992
PackageWidth	0.3937
Shank Type	Straight
Tool Construction	Solid
Type of Cut	Down Cut
Weight	0.00914331

List Price: $16.57

Available: Contact Customer Service

Contact Us!

Our experts are here to help.

Local: 563.391.6220

USA: 800.553.8024

Email: sales@maford.com

Series Attributes

M.A.Ford® Diamond Grind Router Down Cut 1.20mmx4.0x38 End Mill attributes

Downloads

Speed and Feed Data

Series 231 Catalog Pages

Line Drawing
