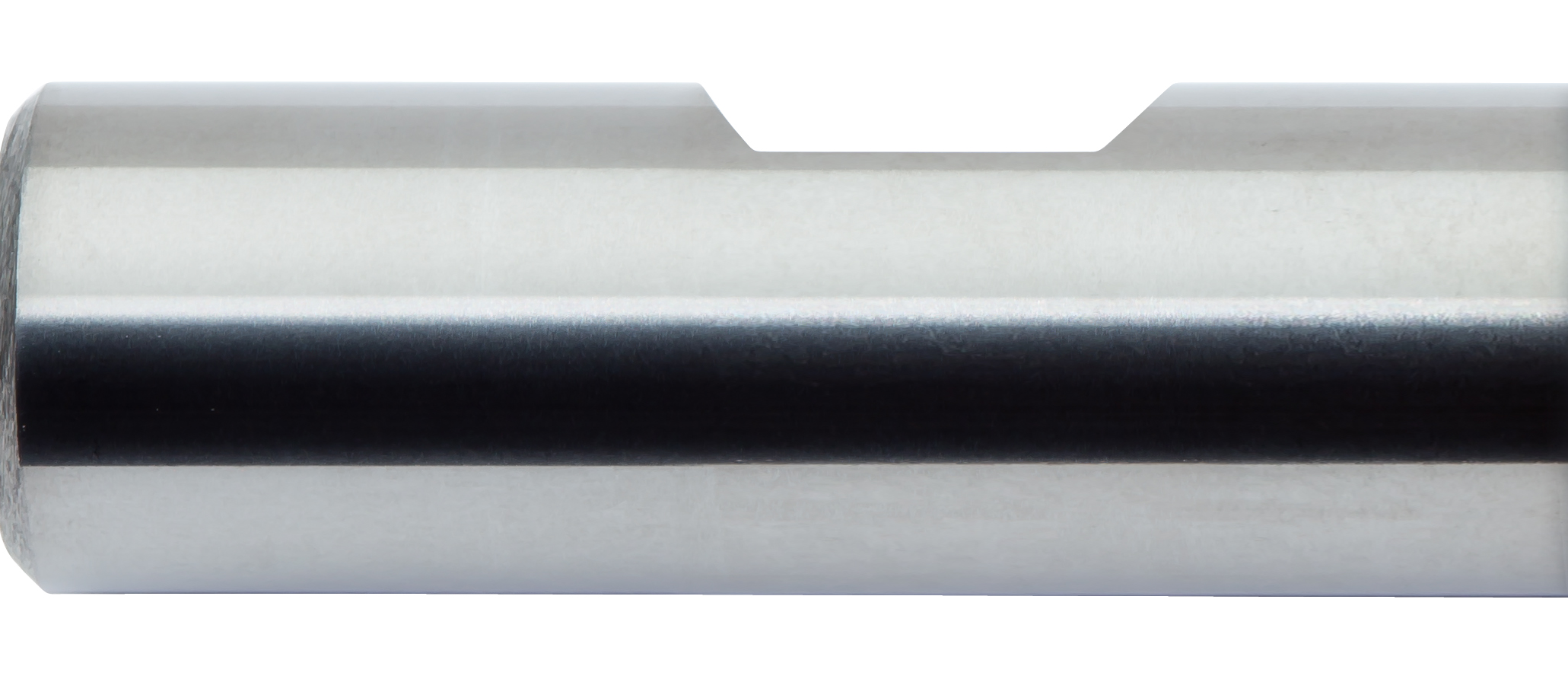

M.A.Ford® TuffCut® XR 4 Flute End Mill Necked Variable Helix 5mmx8x17x57x0.20R ALtima® drawing M.A.Ford® TuffCut® XR 4 Flute End Mill Necked Variable Helix 5mmx8x17x57x0.20R ALtima® drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

M.A.Ford® TuffCut® XR 4 Flute End Mill Necked Variable Helix 5mmx8x17x57x0.20R ALtima®

Product Id: 177S1969R008AW
EDP: 18240

Sizes

Corner Radius0.2mm
Corner Radius Dec.008
Diameter (D/D1)5mm
Diameter Dec.1968
Flute Length (L2)8mm
Flute Length Dec.3150
Neck Length (L3)17mm
Neck Length Dec.6693
Overall Length (L1)57mm
Overall Length Dec2.2441
Shank Diameter (D2)6mm
Shank Diameter Dec.2362

Specifications

Center CuttingYes
CoatingALtima®
Country of OriginUSA
End GrindCorner Radius
Helix Angle35°-38° Variable
MaterialCarbide
Neck Diameter (D3)4.9mm
Neck Diameter Dec0.193
# Flutes RH4
Shank TypeHB DIN 6535
Tool ConstructionSolid
Trade NameTuffCut® XR
Weight0.05165705
List Price: $54.74
Available: 266
