This tool is non-stock and not returnable
Product Id: 16927560A
EDP: 15923

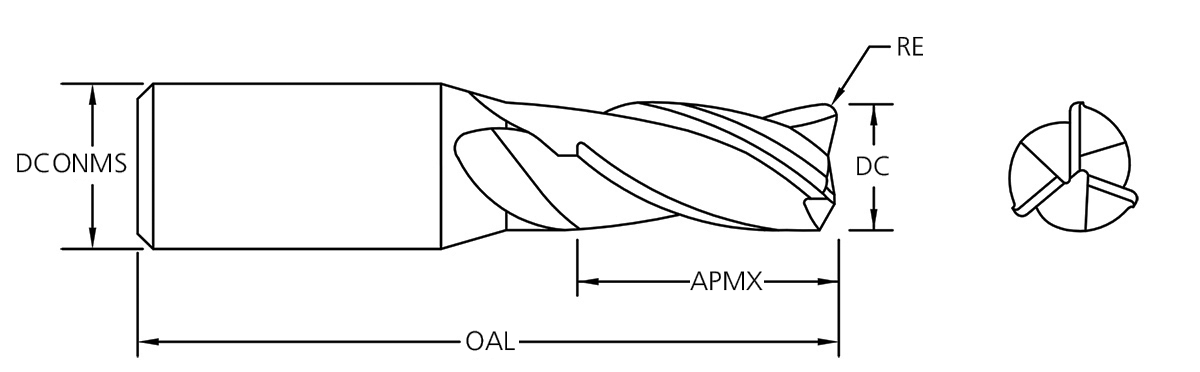

Sizes
| Diameter (DC) | 7mm |
|---|
| Diameter Dec | .2756 |
|---|
| Flute Length (APMX) | 13mm |
|---|
| Flute Length Dec | .5118 |
|---|
| Overall Length (OAL) | 51mm |
|---|
| Overall Length Dec | 2.0079 |
|---|
| Shank Diameter (DCONMS) | 8mm |
|---|
| Shank Diameter Dec | .3150 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | ALtima® |
|---|
| Country of Origin | USA |
|---|
| End Grind | Square |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 3 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.07644805 |
|---|
