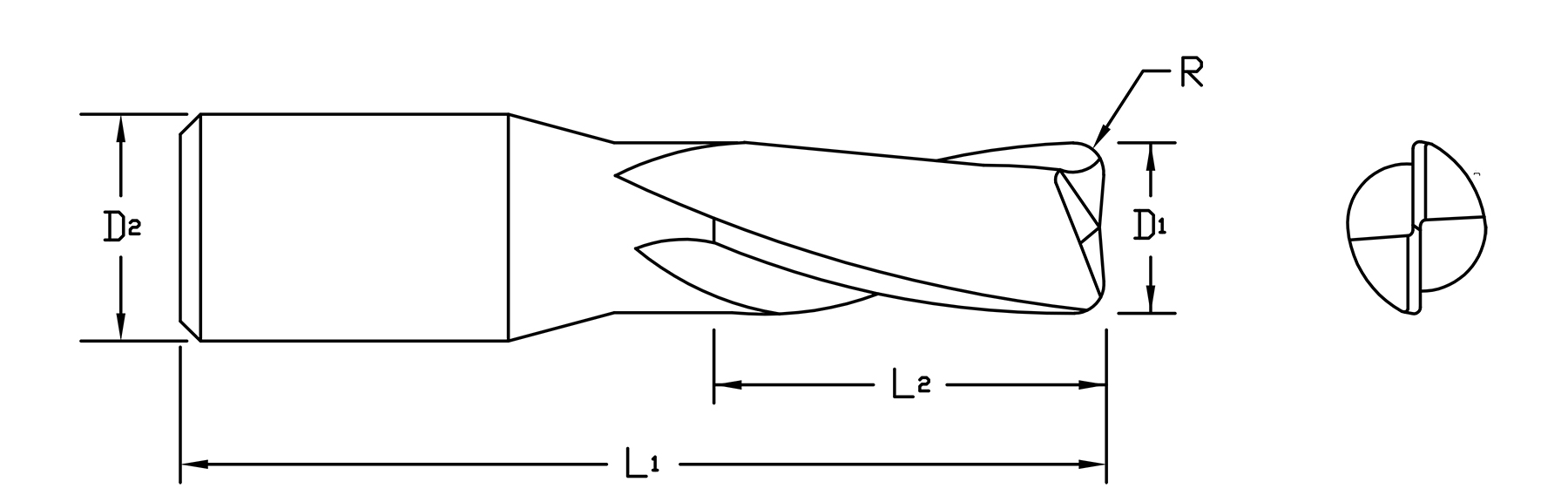

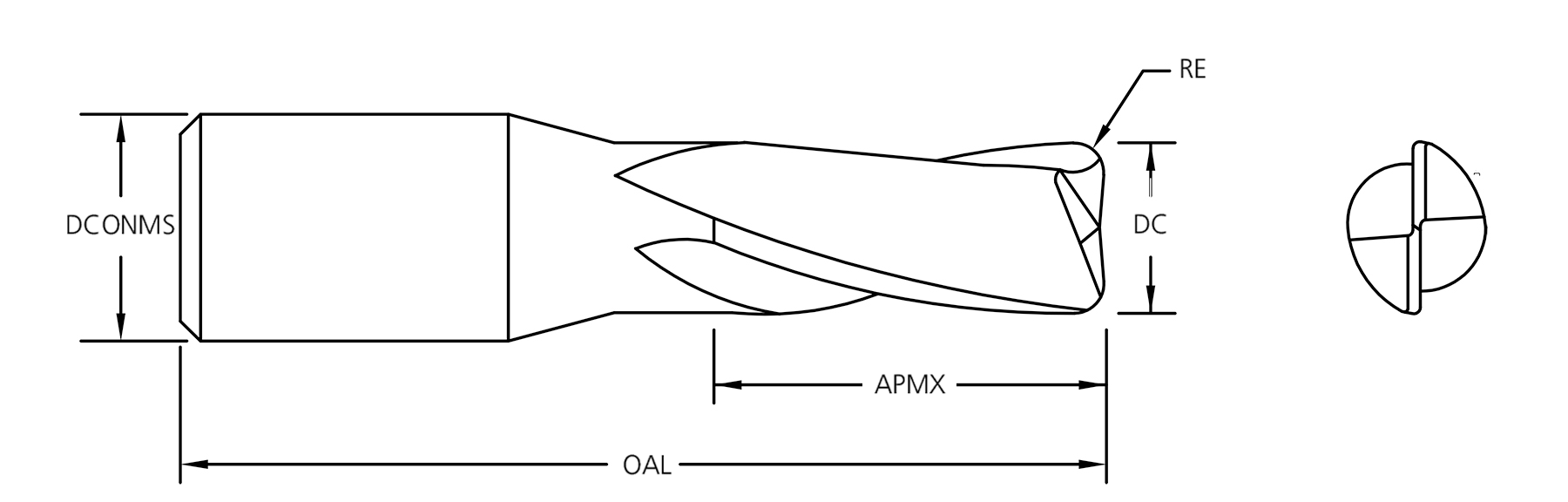

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1.50mmx3.00x38 drawing M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1.50mmx3.00x38 drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing

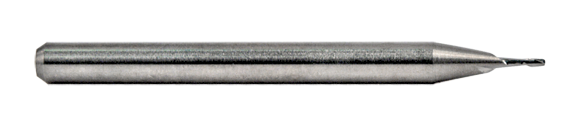

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1.50mmx3.00x38

Product Id: 16405910
EDP: 16407

Sizes

Diameter (D/D1)1.5mm
Diameter Dec.0591
Flute Length (L2)3mm
Flute Length Dec.1181
Overall Length (L1)38mm
Overall Length Dec1.4961
Shank Diameter (D2)3mm
Shank Diameter Dec.1181

Specifications

Center CuttingYes
CoatingUncoated
Country of OriginUSA
End GrindSquare
Helix Angle30°
MaterialCarbide
# Flutes RH2
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.00880867
List Price: $23.84
Available: 150
