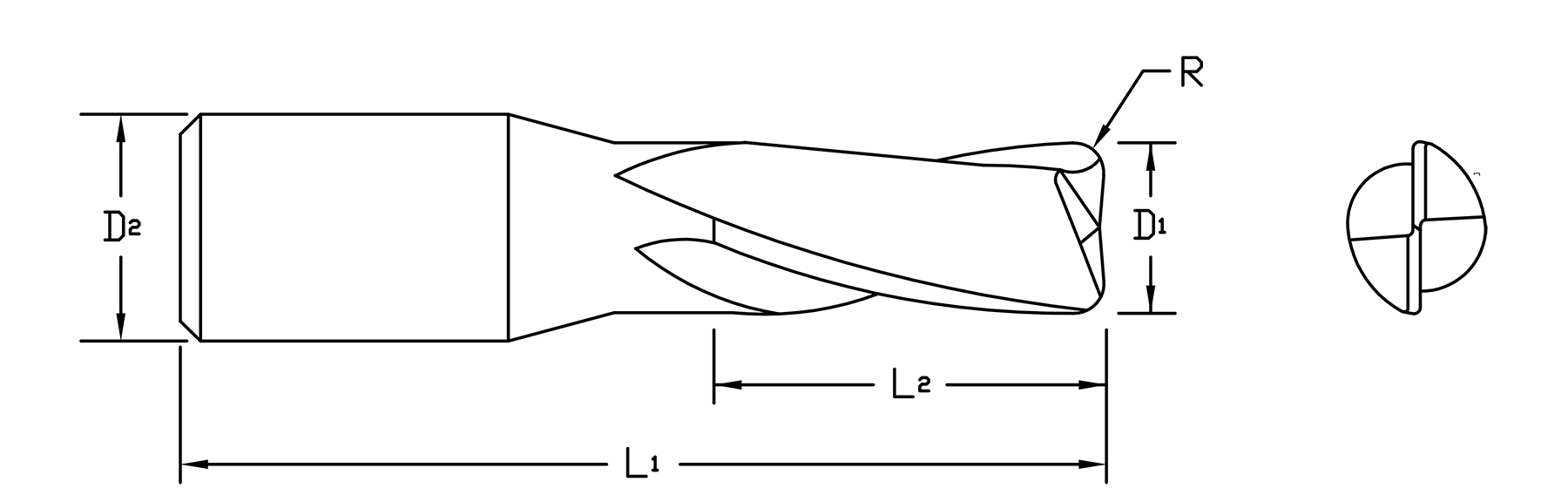

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1/32x1/16x1-1/2 TiCN drawing M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1/32x1/16x1-1/2 TiCN drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing

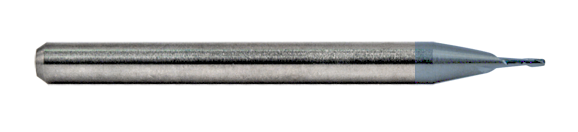

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1/32x1/16x1-1/2 TiCN

Product Id: 16403120C
EDP: 11788

Sizes

Diameter (D/D1)1/32
Diameter Dec.0312
Flute Length (L2)1/16
Flute Length Dec.0625
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)1/8
Shank Diameter Dec.1250

Specifications

Center CuttingYes
CoatingTiCN
Country of OriginUSA
End GrindSquare
Helix Angle30°
MaterialCarbide
# Flutes RH2
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.01019484
List Price: $34.06
Available: 6

Contact Us!

Our experts are here to help.

Local: 563.391.6220
USA: 800.553.8024
Email: sales@maford.com

Series Attributes

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 1/32x1/16x1-1/2 TiCN attributes
