This tool is non-stock and not returnable
Product Id: 16318750R.008B
EDP: 15857

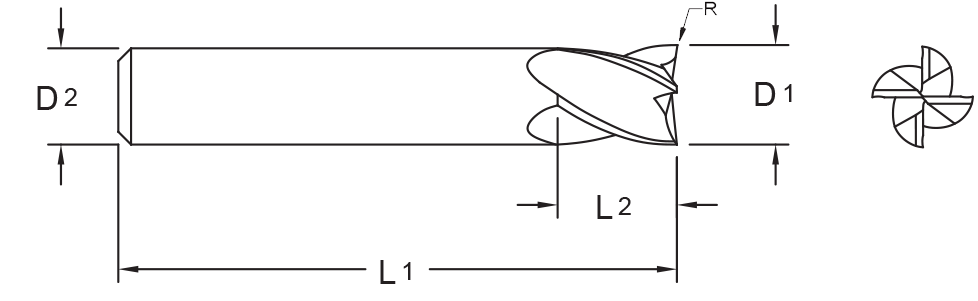

Sizes
| Corner Radius (RE) | 0.008 |
|---|
| Corner Radius Dec | .008 |
|---|
| Diameter (DC) | 3/16 |
|---|
| Diameter Dec | .1875 |
|---|
| Flute Length (APMX) | 3/8 |
|---|
| Flute Length Dec | .3750 |
|---|
| Overall Length (OAL) | 2 |
|---|
| Overall Length Dec | 2.0000 |
|---|
| Shank Diameter (DCONMS) | 3/16 |
|---|
| Shank Diameter Dec | .1875 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | ALtima® Blaze |
|---|
| Country of Origin | USA |
|---|
| End Grind | Corner Radius |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 4 |
|---|
| PackageLength | 2.3110 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.02900116 |
|---|
