M.A.Ford® TuffCut® GP 2 Flute Ball Nose End Mill 1/16x3/16x1-1/2 TiCN drawing M.A.Ford® TuffCut® GP 2 Flute Ball Nose End Mill 1/16x3/16x1-1/2 TiCN drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing
  • 3D Surfacing

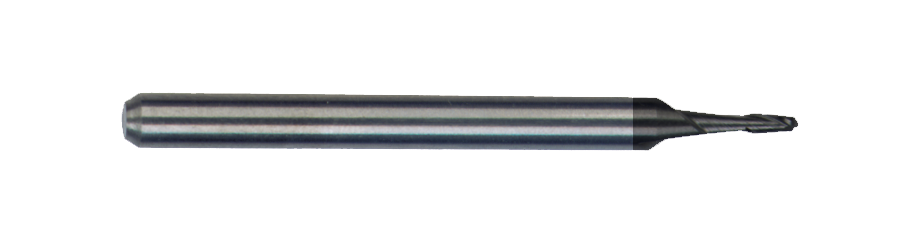

M.A.Ford® TuffCut® GP 2 Flute Ball Nose End Mill 1/16x3/16x1-1/2 TiCN

Product Id: 15006250C
EDP: 11543

Sizes

Diameter (DC)1/16
Diameter Dec.0625
Flute Length (APMX)3/16
Flute Length Dec.1875
Overall Length (OAL)1-1/2
Overall Length Dec1.5000
Shank Diameter (DCONMS)1/8
Shank Diameter Dec.1250

Specifications

Ball Radius Dec.0312
Ball Radius (RE)1/32
Center CuttingYes
CoatingTiCN
Country of OriginUSA
End GrindBall
Helix Angle30°
MaterialCarbide
NOF RH2
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.00946787
List Price: $32.75
Available: 35
