This tool is non-stock and not returnable
Product Id: 15003940AH
EDP: 12734

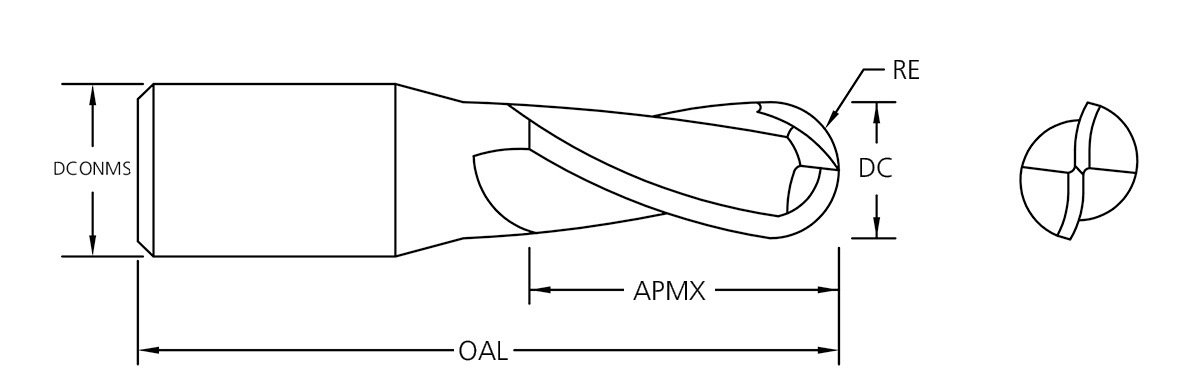

Sizes
| Diameter (DC) | 1mm |
|---|
| Diameter Dec | .0394 |
|---|
| Flute Length (APMX) | 3mm |
|---|
| Flute Length Dec | .1181 |
|---|
| Overall Length (OAL) | 38mm |
|---|
| Overall Length Dec | 1.4961 |
|---|
| Shank Diameter (DCONMS) | 3mm |
|---|
| Shank Diameter Dec | .1181 |
|---|
Specifications
| Ball Radius Dec | .0197 |
|---|
| Ball Radius (RE) | 0.5mm |
|---|
| Center Cutting | Yes |
|---|
| Coating | ALtima® Xtreme |
|---|
| Country of Origin | USA |
|---|
| End Grind | Ball |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 2 |
|---|
| PackageHeight | 0.2992 |
|---|
| PackageLength | 1.7992 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.00875466 |
|---|
