This tool is non-stock and not returnable
Product Id: 12105120F
EDP: 76964

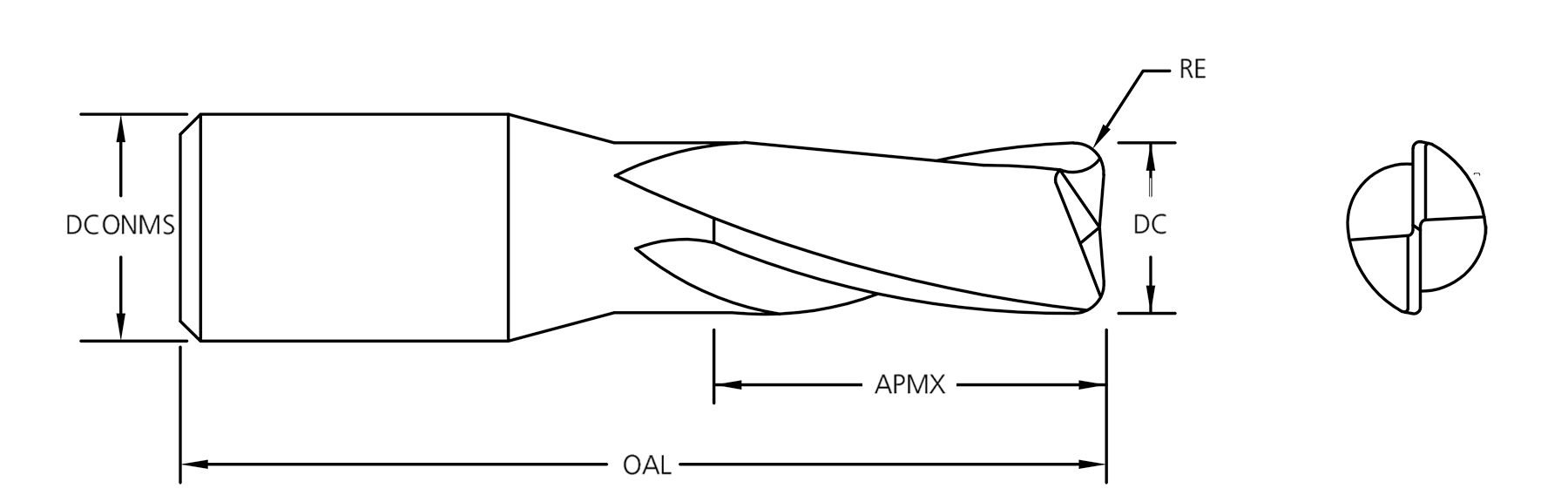

Sizes
| Diameter (DC) | 1.3mm |
|---|
| Diameter Dec | .0512 |
|---|
| Flute Length (APMX) | 3.9mm |
|---|
| Flute Length Dec | .1535 |
|---|
| Overall Length (OAL) | 38mm |
|---|
| Overall Length Dec | 1.4961 |
|---|
| Shank Diameter (DCONMS) | 3mm |
|---|
| Shank Diameter Dec | .1181 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | Fordlube |
|---|
| Country of Origin | USA |
|---|
| End Grind | Square |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 2 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.00858250 |
|---|
