This tool is discontinued and not returnable
Product Id: 11634382C
EDP: 11500

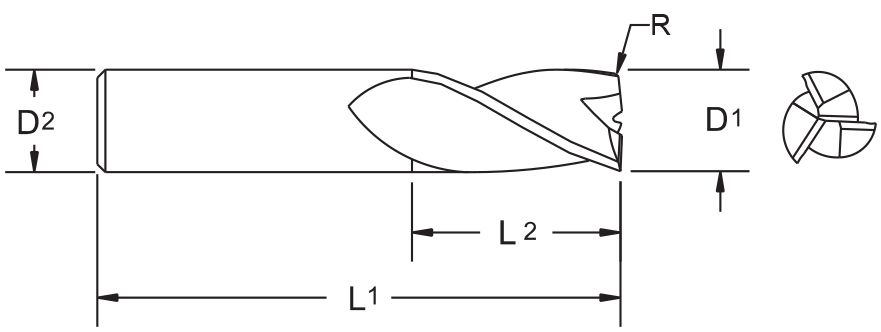

Sizes
| Corner Radius (RE) | 0.02 |
|---|
| Corner Radius Dec | .020 |
|---|
| Diameter (DC) | 11/32 |
|---|
| Diameter Dec | .3438 |
|---|
| Flute Length (APMX) | 7/8 |
|---|
| Flute Length Dec | .8750 |
|---|
| Overall Length (OAL) | 2-1/2 |
|---|
| Overall Length Dec | 2.5000 |
|---|
| Shank Diameter (DCONMS) | 3/8 |
|---|
| Shank Diameter Dec | .3750 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | TiCN |
|---|
| Country of Origin | USA |
|---|
| End Grind | Corner Radius |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 3 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.12795171 |
|---|
