This tool is non-stock and not returnable

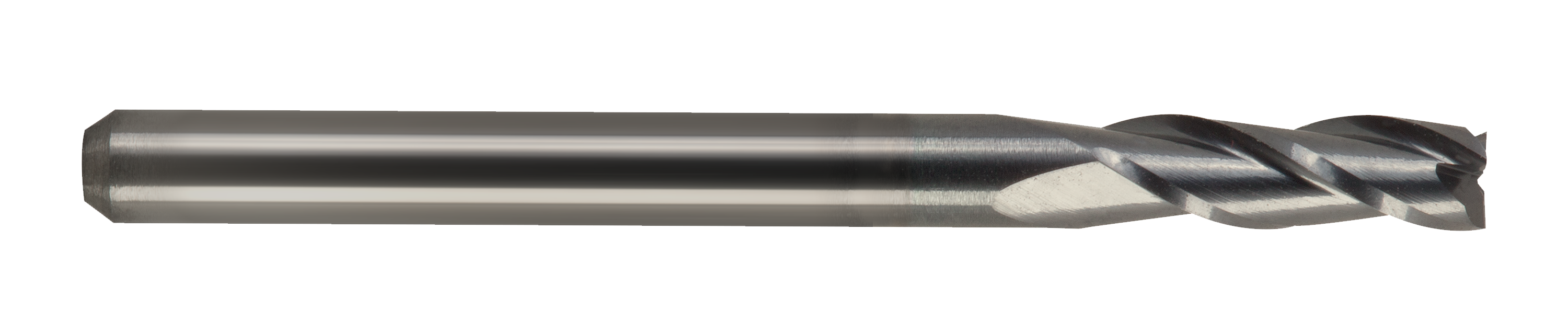

Product Id: 11625000R.060
EDP: 15936

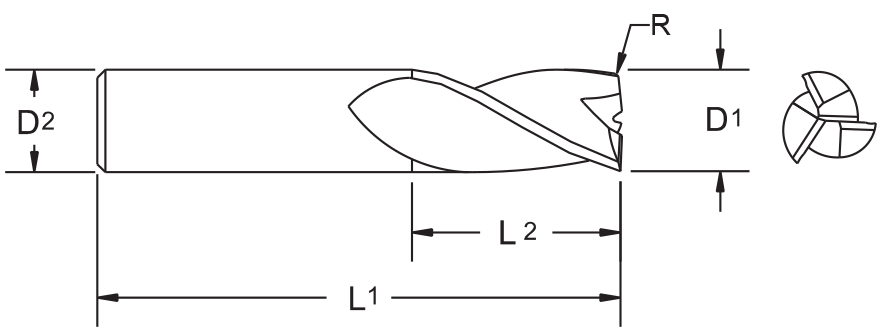

Sizes
| Corner Radius (RE) | 0.06 |
|---|
| Corner Radius Dec | .060 |
|---|
| Diameter (DC) | 1/4 |
|---|
| Diameter Dec | .2500 |
|---|
| Flute Length (APMX) | 3/4 |
|---|
| Flute Length Dec | .7500 |
|---|
| Overall Length (OAL) | 2-1/2 |
|---|
| Overall Length Dec | 2.5000 |
|---|
| Shank Diameter (DCONMS) | 1/4 |
|---|
| Shank Diameter Dec | .2500 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | Uncoated |
|---|
| Country of Origin | USA |
|---|
| End Grind | Corner Radius |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 3 |
|---|
| PackageLength | 3.09839999 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.06062270 |
|---|
