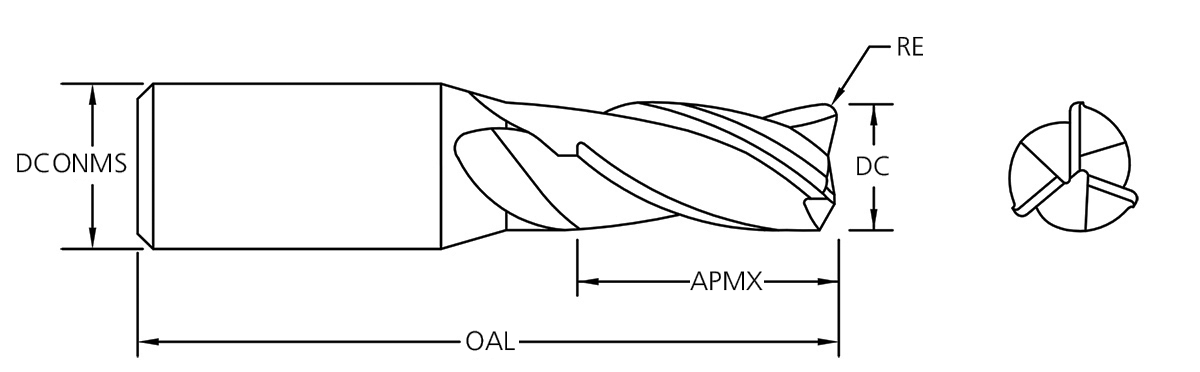

M.A.Ford® TuffCut® GP 3 Flute End Mill 7/32x3/4x2-1/2x.020R TiCN drawing M.A.Ford® TuffCut® GP 3 Flute End Mill 7/32x3/4x2-1/2x.020R TiCN drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

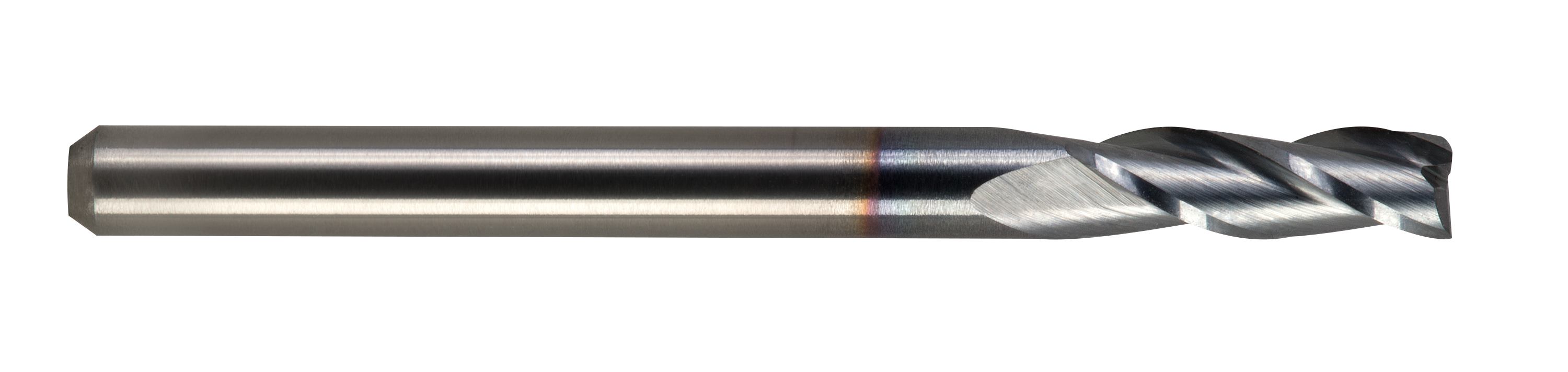

M.A.Ford® TuffCut® GP 3 Flute End Mill 7/32x3/4x2-1/2x.020R TiCN

Product Id: 11621872C
EDP: 11698

Sizes

Corner Radius (RE)0.02
Corner Radius Dec.020
Diameter (DC)7/32
Diameter Dec.2187
Flute Length (APMX)3/4
Flute Length Dec.7500
Overall Length (OAL)2-1/2
Overall Length Dec2.5000
Shank Diameter (DCONMS)1/4
Shank Diameter Dec.2500

Specifications

Center CuttingYes
CoatingTiCN
Country of OriginUSA
End GrindCorner Radius
Helix Angle30°
MaterialCarbide
NOF RH3
PackageLength3.09839999
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.05802945
List Price: $54.02
Available: 24
