This tool is non-stock and not returnable
Product Id: 11621870C
EDP: 10275

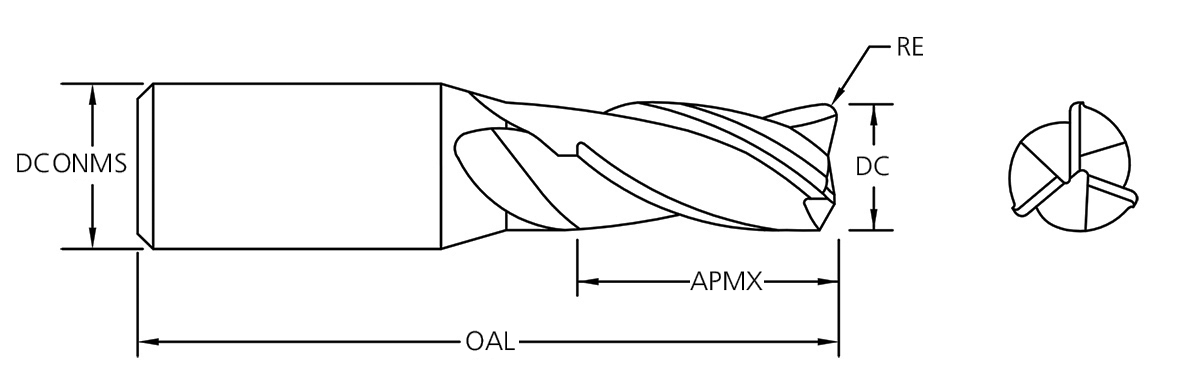

Sizes
| Diameter (DC) | 7/32 |
|---|
| Diameter Dec | .2187 |
|---|
| Flute Length (APMX) | 5/8 |
|---|
| Flute Length Dec | .6250 |
|---|
| Overall Length (OAL) | 2-1/2 |
|---|
| Overall Length Dec | 2.5000 |
|---|
| Shank Diameter (DCONMS) | 1/4 |
|---|
| Shank Diameter Dec | .2500 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | TiCN |
|---|
| Country of Origin | USA |
|---|
| End Grind | Square |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 3 |
|---|
| PackageLength | 3.09839999 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.06016136 |
|---|
