This tool is non-stock and not returnable
Product Id: 11115750THB
EDP: 76907

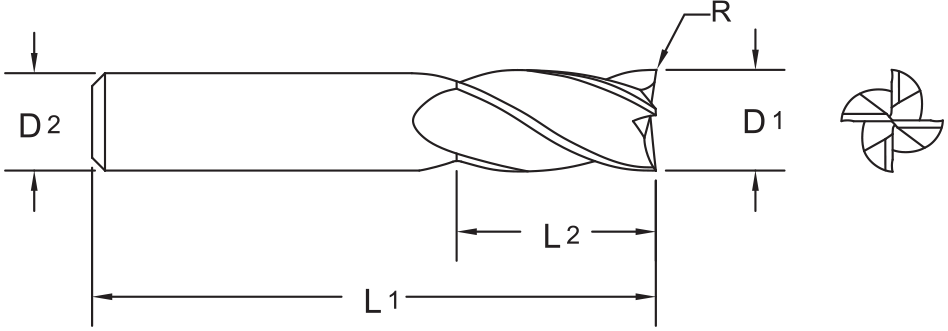

Sizes
| Diameter (DC) | 4mm |
|---|
| Diameter Dec | .1575 |
|---|
| Flute Length (APMX) | 14mm |
|---|
| Flute Length Dec | .5512 |
|---|
| Overall Length (OAL) | 51mm |
|---|
| Overall Length Dec | 2.0079 |
|---|
| Shank Diameter (DCONMS) | 4mm |
|---|
| Shank Diameter Dec | .1575 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | TiN |
|---|
| Country of Origin | USA |
|---|
| End Grind | Square |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 4 |
|---|
| PackageLength | 2.3110 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | HB DIN 6535 |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.01960111 |
|---|
