This tool is non-stock and not returnable
Product Id: 11110930R.016
EDP: 76897

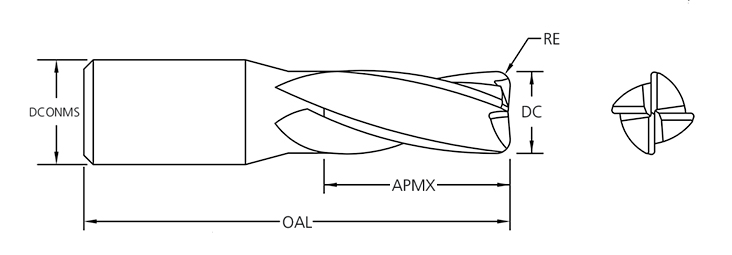

Sizes
| Corner Radius (RE) | 0.016 |
|---|
| Corner Radius Dec | .016 |
|---|
| Diameter (DC) | 7/64 |
|---|
| Diameter Dec | .1093 |
|---|
| Flute Length (APMX) | 3/8 |
|---|
| Flute Length Dec | .3750 |
|---|
| Overall Length (OAL) | 1-1/2 |
|---|
| Overall Length Dec | 1.5000 |
|---|
| Shank Diameter (DCONMS) | 1/8 |
|---|
| Shank Diameter Dec | .1250 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | Uncoated |
|---|
| Country of Origin | USA |
|---|
| End Grind | Corner Radius |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| NOF RH | 4 |
|---|
| PackageHeight | 0.2992 |
|---|
| PackageLength | 1.7992 |
|---|
| PackageWidth | 0.3937 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.00902323 |
|---|
