End Mills / XV7CB

Solid Carbide TuffCut® XV, 7 Flute End Mill, Series XV7CB
The XV7CB was developed for optimal metal removal rates and strength in dynamic milling strategies in tough-to-machine materials such as stainless steels, titanium, and high temp alloys. Offered in flute lengths 3xD and 4xD, as well as a full range of standard aerospace corner radius options, the XV7CB is an extremely versatile offering that is sure to give a boost in both productivity and tool life.
  • 7 Flute
  • Solid carbide
  • 2xD up to 4xD length of cut options
  • New ALtima® Q coated,  provides optimal heat and wear resistance allowing for increased tool life, AQ=ALtima® Q coated
  • 38° helix, variable pitch geometry for smooth cutting action and reduced harmonics
  • Thick core design for increased strength in long ap applications
  • Staggered chipbreaker technology allows for optimal chip management and reduced cutting forces
  • Center-cutting end geometry
  • Corner radius
  • Straight shank and weldon flat options

Product Range

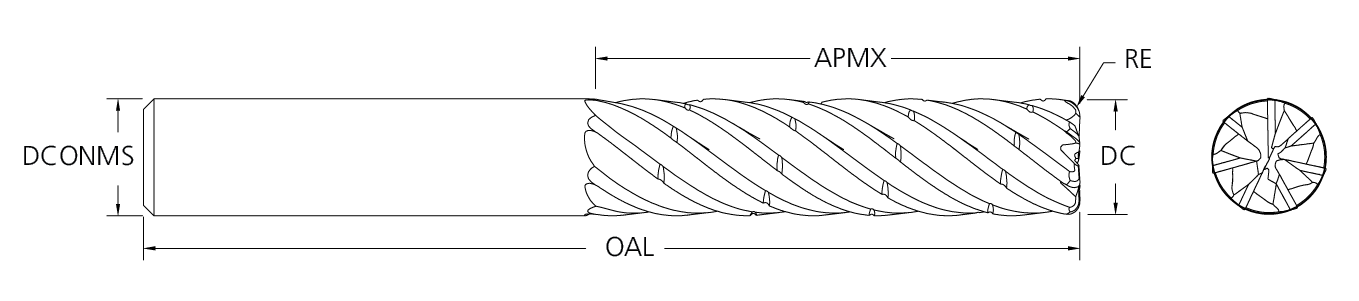

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Corner Radius (RE) Coating Shank Type
.2500 XV7CB25024AQ 38214 1/4 1/4 2-1/2 3/4 0.03 ALtima® Q Straight
.2500 XV7CB25026AQ 38215 1/4 1/4 2-1/2 3/4 0.06 ALtima® Q Straight
.3750 XV7CB37524AQ 38200 3/8 3/8 3 1-1/4 0.03 ALtima® Q Straight
.3750 XV7CB37526AQ 38201 3/8 3/8 3 1-1/4 0.06 ALtima® Q Straight
.3750 XV7CB37514AQ 19911 3/8 3/8 2-1/2 7/8 0.03 ALtima® Q Straight
.3750 XV7CB37516AQ 19912 3/8 3/8 2-1/2 7/8 0.06 ALtima® Q Straight
.5000 XV7CB50034AQ 38202 1/2 1/2 3-1/2 1-5/8 0.03 ALtima® Q Straight
.5000 XV7CB50036AQ 38203 1/2 1/2 3-1/2 1-5/8 0.06 ALtima® Q Straight
.5000 XV7CB50044AQ 38204 1/2 1/2 4 2-1/8 0.03 ALtima® Q Straight
.5000 XV7CB50046AQ 38205 1/2 1/2 4 2-1/8 0.06 ALtima® Q Straight
.5000 XV7CB50024AQ 19752 1/2 1/2 3 1-1/4 0.03 ALtima® Q Straight
.5000 XV7CB50004AQ 19866 1/2 1/2 2-1/2 5/8 0.03 ALtima® Q Straight
.5000 XV7CB50026AQ 19913 1/2 1/2 3 1-1/4 0.06 ALtima® Q Straight
.5000 XV7CB50044AQW 20747 1/2 1/2 4 2-1/8 0.03 ALtima® Q Weldon
.6250 XV7CB62534AQ 38206 5/8 5/8 4 2-1/8 0.03 ALtima® Q Straight
.6250 XV7CB62536AQ 38207 5/8 5/8 4 2-1/8 0.06 ALtima® Q Straight
.6250 XV7CB62544AQ 38208 5/8 5/8 5 2-5/8 0.03 ALtima® Q Straight
.6250 XV7CB62546AQ 38209 5/8 5/8 5 2-5/8 0.06 ALtima® Q Straight
.6250 XV7CB62514AQ 19914 5/8 5/8 3-1/2 1-3/8 0.03 ALtima® Q Straight
.6250 XV7CB62516AQ 19915 5/8 5/8 3-1/2 1-3/8 0.06 ALtima® Q Straight
.6250 XV7CB62534AQW 20113 5/8 5/8 4 2-1/8 0.03 ALtima® Q Weldon
.7500 XV7CB75034AQ 38210 3/4 3/4 5 2-3/8 0.03 ALtima® Q Straight
.7500 XV7CB75036AQ 38211 3/4 3/4 5 2-3/8 0.06 ALtima® Q Straight
.7500 XV7CB75054AQ 38212 3/4 3/4 6 3-1/4 0.03 ALtima® Q Straight
.7500 XV7CB75056AQ 38213 3/4 3/4 6 3-1/4 0.06 ALtima® Q Straight
.7500 XV7CB75024AQ 19916 3/4 3/4 4 1-5/8 0.03 ALtima® Q Straight
.7500 XV7CB75026AQ 19917 3/4 3/4 4 1-5/8 0.06 ALtima® Q Straight
.7500 XV7CB75034AQW 20207 3/4 3/4 5 2-3/8 0.03 ALtima® Q Weldon
0.625 XV7CB62524AQ 38187 5/8 5/8 4 1-5/8 0.03 ALtima® Q Straight
0.625 XV7CB62526AQ 38188 5/8 5/8 4 1-5/8 0.06 ALtima® Q Straight
