End Mills / XV5CB

Solid Carbide TuffCut® XV, 5 Flute End Mill, Series XV5CB
The XV5CB was developed for optimal metal removal rates in long axial engagement, dynamic milling strategies in both ISO P and ISO M material groups. Offered in both 3xD and 4xD length of cut options, the XV5CB increases productivity by utilizing its aggressive stepover capabilities while maintaining a stable and reliable process.
  • 5 Flute
  • Solid carbide
  • 3xD and 4xD length of cut options
  • New ALtima® Q coated,  provides optimal heat and wear resistance allowing for increased tool life, AQ=ALtima® Q coated
  • 40° helix, variable pitch geometry for smooth cutting action and reduced harmonics
  • Optimized substrate grade provides increased TRS and toughness
  • Staggered chipbreaker technology allows for optimal chip management and reduced cutting forces
  • Thick core design for increased strength in long ap applications
  • Open end geometry
  • Non-center cutting
  • Corner radius
  • Straight shank and weldon flat options

Product Range

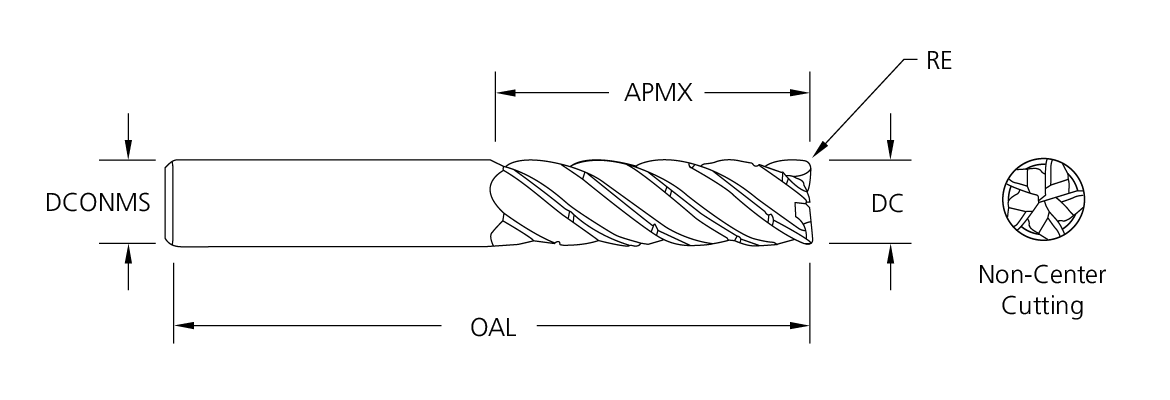

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Corner Radius (RE) Coating Shank Type
.3750 XV5CB37534AQ 08090 3/8 3/8 3 1-1/4 0.03 ALtima® Q Straight
.3750 XV5CB37544AQ 08094 3/8 3/8 3-1/2 1-5/8 0.03 ALtima® Q Straight
.3750 XV5CB37534AQW 08091 3/8 3/8 3 1-1/4 0.03 ALtima® Q Weldon
.3750 XV5CB37544AQW 08095 3/8 3/8 3-1/2 1-5/8 0.03 ALtima® Q Weldon
.5000 XV5CB50034AQ 08106 1/2 1/2 3-1/2 1-5/8 0.03 ALtima® Q Straight
.5000 XV5CB50044AQ 08112 1/2 1/2 4 2-1/8 0.03 ALtima® Q Straight
.5000 XV5CB50034AQW 08107 1/2 1/2 3-1/2 1-5/8 0.03 ALtima® Q Weldon
.5000 XV5CB50044AQW 08113 1/2 1/2 4 2-1/8 0.03 ALtima® Q Weldon
.6250 XV5CB62534AQ 08116 5/8 5/8 4 2-1/8 0.03 ALtima® Q Straight
.6250 XV5CB62544AQ 08120 5/8 5/8 5 2-5/8 0.03 ALtima® Q Straight
.6250 XV5CB62534AQW 08117 5/8 5/8 4 2-1/8 0.03 ALtima® Q Weldon
.6250 XV5CB62544AQW 08121 5/8 5/8 5 2-5/8 0.03 ALtima® Q Weldon
.7500 XV5CB75034AQ 08130 3/4 3/4 5 2-1/2 0.03 ALtima® Q Straight
.7500 XV5CB75044AQ 08134 3/4 3/4 6 3-1/8 0.03 ALtima® Q Straight
.7500 XV5CB75034AQW 08131 3/4 3/4 5 2-1/2 0.03 ALtima® Q Weldon
.7500 XV5CB75044AQW 08135 3/4 3/4 6 3-1/8 0.03 ALtima® Q Weldon
