End Mills / XAL5R

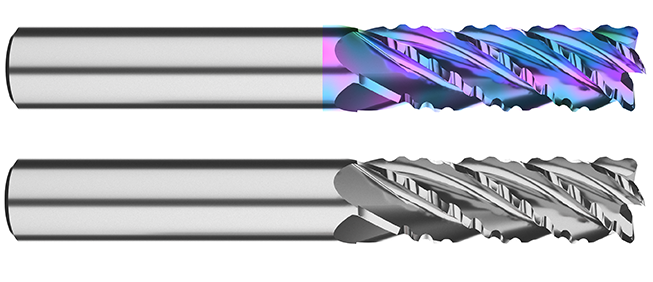

Solid Carbide TuffCut® X-AL, 5 Flute End Mill designed for high removal rates in aluminum alloys. Featuring unique characteristics for deep, dynamic milling applications, but with extended capabilities from slotting to semi-finishing operations.
  • 5-flute
  • Solid Carbide
  • Uncoated or Gem+ coated options
  • Special geometry ensures stability in long-reach applications
  • Engineered to reduce power requirements at high metal removal rates
  • Designed to reduce cutting noise compared to standard end mill types
  • Through-coolant for improved chip evacuation in deep pockets
  • Corner radius
Need some more options for aluminum look here.

Materials

  • Non-Ferrous

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing

Series Attributes

Downloads

Product Range

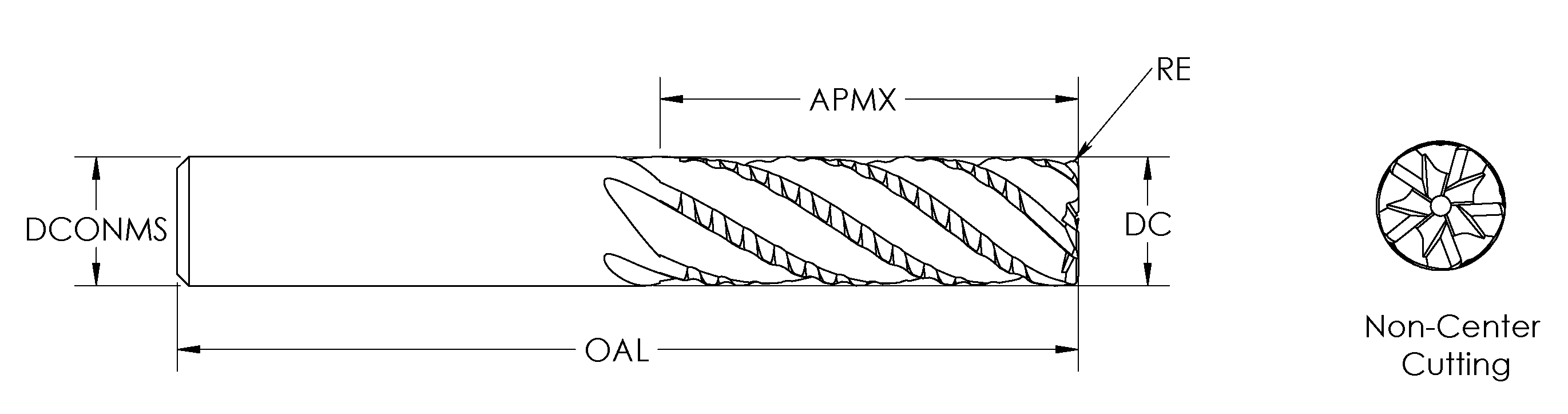

PART EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Corner Radius (RE) Coating Shank Type
.3750 XAL5R37544 28167 3/8 3/8 3-1/2 1-5/8 0.03 Uncoated Straight
.3750 XAL5R37534GP 28176 3/8 3/8 3 1-1/4 0.03 Gem Plus Straight
.3750 XAL5R37544GP 28177 3/8 3/8 3-1/2 1-5/8 0.03 Gem Plus Straight
.3750 XAL5R37534 28166 3/8 3/8 3 1-1/4 0.03 Uncoated Straight
.5000 XAL5R50034 28168 1/2 1/2 3-1/2 1-5/8 0.03 Uncoated Straight
.5000 XAL5R50038 28169 1/2 1/2 3-1/2 1-5/8 0.12 Uncoated Straight
.5000 XAL5R50044 28170 1/2 1/2 4 2-1/8 0.03 Uncoated Straight
.5000 XAL5R50048 28171 1/2 1/2 4 2-1/8 0.12 Uncoated Straight
.5000 XAL5R50034GP 28178 1/2 1/2 3-1/2 1-5/8 0.03 Gem Plus Straight
.5000 XAL5R50038GP 28179 1/2 1/2 3-1/2 1-5/8 0.12 Gem Plus Straight
.5000 XAL5R50044GP 28180 1/2 1/2 4 2-1/8 0.03 Gem Plus Straight
.5000 XAL5R50048GP 28181 1/2 1/2 4 2-1/8 0.12 Gem Plus Straight
.6250 XAL5R62534 28172 5/8 5/8 4 2-1/8 0.03 Uncoated Straight
.6250 XAL5R62538 28173 5/8 5/8 4 2-1/8 0.12 Uncoated Straight
.6250 XAL5R62534GP 28182 5/8 5/8 4 2-1/8 0.03 Gem Plus Straight
.6250 XAL5R62538GP 28183 5/8 5/8 4 2-1/8 0.12 Gem Plus Straight
.7500 XAL5R75034 28174 3/4 3/4 5 2-1/2 0.03 Uncoated Straight
.7500 XAL5R75038 28175 3/4 3/4 5 2-1/2 0.12 Uncoated Straight
.7500 XAL5R75034GP 28184 3/4 3/4 5 2-1/2 0.03 Gem Plus Straight
.7500 XAL5R75038GP 28185 3/4 3/4 5 2-1/2 0.12 Gem Plus Straight
