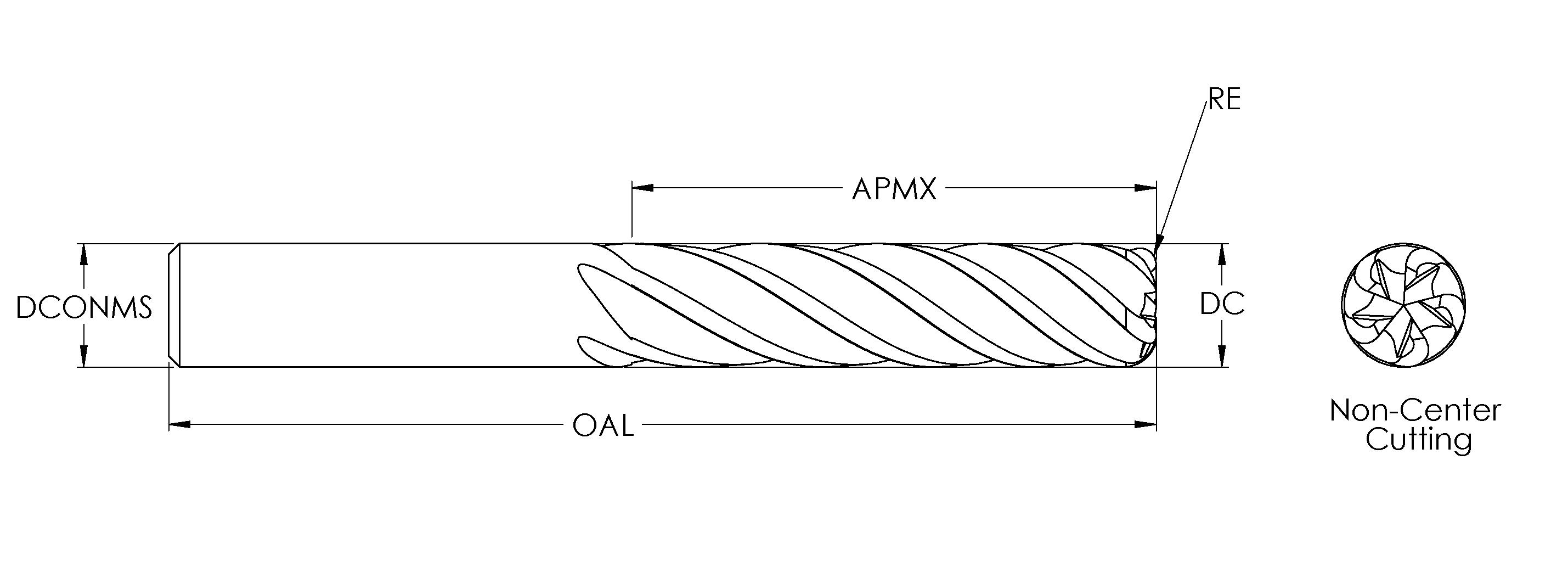

product photo product drawing

End Mills / XAL5F

Solid Carbide TuffCut® X-AL, 5 Flute End Mill
Designed for producing high quality surfaces on thin-walled, aluminum components with minimal material deflection, minimizing taper and maintaining accuracy.
  • 5-flute
  • Solid Carbide
  • Uncoated or Gem+ coated options
  • Anti-vibration design enables finishing at full flute length
  • Square or corner radius versions available
Need some more options for aluminum look here.

Materials

  • Non-Ferrous

Applications

  • Finishing

Series Attributes

Downloads

Product Range

PART EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Corner Radius (RE) Coating Shank Type
.3750 XAL5F37540 28211 3/8 3/8 3-1/2 1-5/8 Uncoated Straight
.3750 XAL5F37544 28212 3/8 3/8 3-1/2 1-5/8 0.03 Uncoated Straight
.3750 XAL5F37540GP 28222 3/8 3/8 3-1/2 1-5/8 Gem Plus Straight
.3750 XAL5F37544GP 28223 3/8 3/8 3-1/2 1-5/8 0.03 Gem Plus Straight
.5000 XAL5F50040 28213 1/2 1/2 4 2-1/8 Uncoated Straight
.5000 XAL5F50044 28214 1/2 1/2 4 2-1/8 0.03 Uncoated Straight
.5000 XAL5F50048 28215 1/2 1/2 4 2-1/8 0.12 Uncoated Straight
.5000 XAL5F50040GP 28224 1/2 1/2 4 2-1/8 Gem Plus Straight
.5000 XAL5F50044GP 28225 1/2 1/2 4 2-1/8 0.03 Gem Plus Straight
.5000 XAL5F50048GP 28226 1/2 1/2 4 2-1/8 0.12 Gem Plus Straight
.6250 XAL5F62540 28216 5/8 5/8 5 2-5/8 Uncoated Straight
.6250 XAL5F62544 28217 5/8 5/8 5 2-5/8 0.03 Uncoated Straight
.6250 XAL5F62548 28218 5/8 5/8 5 2-5/8 0.12 Uncoated Straight
.6250 XAL5F62540GP 28227 5/8 5/8 5 2-5/8 Gem Plus Straight
.6250 XAL5F62544GP 28228 5/8 5/8 5 2-5/8 0.03 Gem Plus Straight
.6250 XAL5F62548GP 28229 5/8 5/8 5 2-5/8 0.12 Gem Plus Straight
.7500 XAL5F75040 28219 3/4 3/4 6 3-1/8 Uncoated Straight
.7500 XAL5F75044 28220 3/4 3/4 6 3-1/8 0.03 Uncoated Straight
.7500 XAL5F75048 28221 3/4 3/4 6 3-1/8 0.12 Uncoated Straight
.7500 XAL5F75040GP 28230 3/4 3/4 6 3-1/8 Gem Plus Straight
.7500 XAL5F75044GP 28231 3/4 3/4 6 3-1/8 0.03 Gem Plus Straight
.7500 XAL5F75048GP 28232 3/4 3/4 6 3-1/8 0.12 Gem Plus Straight
