End Mills / FHFP

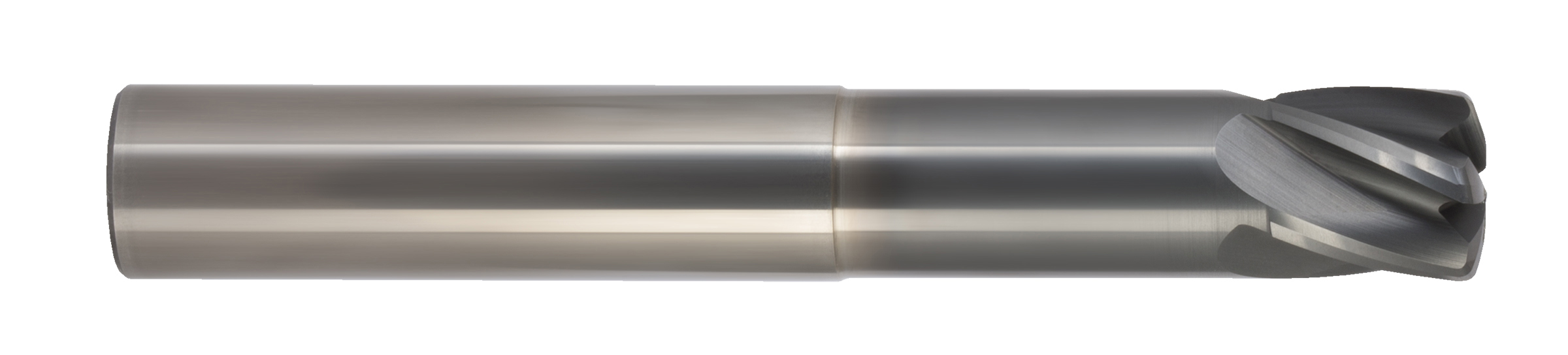

Solid Carbide TuffCut® HF, High-Feed End Mill, Series FHFP
The FHFP is engineered with a positive rake geometry and is suited for a broad range of materials with a hardness less than or equal to 52 HRC. Designed for high metal removal roughing in 3D shapes, long reach applications such as deep/tight pockets and slots, the FHFP is perfect for a broad range of industries.

  • Multi-Flute
  • High-feed geometry
  • 3xD, 5xD, & 8xD neck length options
  • ALtima® Q coated, provides optimal heat and wear resistance allowing for increased tool life, AQ= ALtima® Q coated

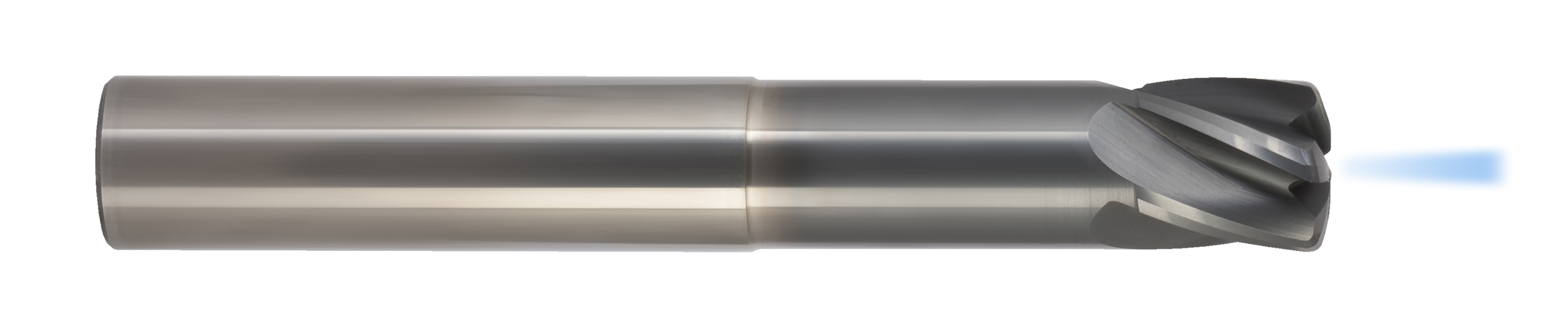

  • Central coolant hole (6mm-16mm sizes) for excellent chip evacuation & heat control at the cutting edge

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium
  • Hard material

Applications

  • Slotting
  • Traditional Roughing

Series Attributes

Downloads

Product Range

PART EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) CAM-RE NOF RH Coating Shank Type
.0787 FHFP02N3-AQ 22081 2mm 6mm 57mm .10mm 7mm 0.2mm 4 ALtima® Q Straight
.0787 FHFP02N5-AQ 22085 2mm 6mm 57mm .10mm 11mm 0.2mm 4 ALtima® Q Straight
.0787 FHFP02N8-AQ 22089 2mm 6mm 57mm .10mm 17mm 0.2mm 4 ALtima® Q Straight
.1181 FHFP03N3-AQ 22082 3mm 6mm 57mm .15mm 10mm 0.3mm 4 ALtima® Q Straight
.1181 FHFP03N5-AQ 22086 3mm 6mm 57mm .15mm 16mm 0.3mm 4 ALtima® Q Straight
.1181 FHFP03N8-AQ 22090 3mm 6mm 64mm .15mm 25mm 0.3mm 4 ALtima® Q Straight
.1575 FHFP04N3-AQ 22083 4mm 6mm 57mm .20mm 13mm 0.4mm 4 ALtima® Q Straight
.1575 FHFP04N5-AQ 22087 4mm 6mm 64mm .20mm 21mm 0.4mm 4 ALtima® Q Straight
.1575 FHFP04N8-AQ 22091 4mm 6mm 75mm .20mm 33mm 0.4mm 4 ALtima® Q Straight
.1969 FHFP05N3-AQ 22084 5mm 6mm 57mm .25mm 16mm 0.5mm 4 ALtima® Q Straight
.1969 FHFP05N5-AQ 22088 5mm 6mm 64mm .25mm 26mm 0.5mm 4 ALtima® Q Straight
.1969 FHFP05N8-AQ 22092 5mm 6mm 75mm .25mm 41mm 0.5mm 4 ALtima® Q Straight
.2362 FHFP06N3-CCAQ 19877 6mm 6mm 57mm .31mm 20mm 0.6mm 4 ALtima® Q Straight
.2362 FHFP06N5-CCAQ 19882 6mm 6mm 75mm .31mm 32mm 0.6mm 4 ALtima® Q Straight
.2362 FHFP06N8-CCAQ 19887 6mm 6mm 90mm .31mm 50mm 0.6mm 4 ALtima® Q Straight
.3150 FHFP08N3-CCAQ 19878 8mm 8mm 63mm .44mm 26mm 0.8mm 4 ALtima® Q Straight
.3150 FHFP08N5-CCAQ 19883 8mm 8mm 83mm .44mm 42mm 0.8mm 4 ALtima® Q Straight
.3150 FHFP08N8-CCAQ 19888 8mm 8mm 110mm .44mm 66mm 0.8mm 4 ALtima® Q Straight
.3937 FHFP10N5-CCAQ 19884 10mm 10mm 100mm .55mm 52mm 1mm 4 ALtima® Q Straight
.3937 FHFP10N8-CCAQ 19889 10mm 10mm 130mm .55mm 82mm 1mm 4 ALtima® Q Straight
.3937 FHFP10N3-CCAQ 19879 10mm 10mm 72mm .55mm 32mm 1mm 4 ALtima® Q Straight
.4724 FHFP12N5-CCAQ 19885 12mm 12mm 110mm .63mm 62mm 1.2mm 5 ALtima® Q Straight
.4724 FHFP12N8-CCAQ 19890 12mm 12mm 150mm .63mm 98mm 1.2mm 5 ALtima® Q Straight
.4724 FHFP12N3-CCAQ 19880 12mm 12mm 83mm .63mm 38mm 1.2mm 5 ALtima® Q Straight
.6299 FHFP16N3-CCAQ 19881 16mm 16mm 100mm .77mm 50mm 1.6mm 5 ALtima® Q Straight
.6299 FHFP16N5-CCAQ 19886 16mm 16mm 133mm .77mm 82mm 1.6mm 5 ALtima® Q Straight
