Drills / CXDSS

Solid Carbide Cyclone XD Drill, 3X  with Double Margin
Enhanced double margin design for quicker engagement in the hole, improved hole finish and improved location when drilling cross holes. Enhanced surface finish technology pre coating improves coating adhesion. Enhanced surface finish technology post coating improves chip evacuation. Refined Edge Protection.
  • 2 Flute
  • 3X Stub length
  • Solid carbide
  • Double margin
  • 140°-142° Point
  • 30° Helix
  • Metric sizes above 5mm manufactured to DIN 6537K
  • ALtima® Plus coated, AP=ALtima® Plus coated
  • ALtima® Plus is a multi-layer AlTiN coating that provides higher heat resistance, longer tool life and reduces chipping and wear
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Series Attributes

Downloads

Product Range

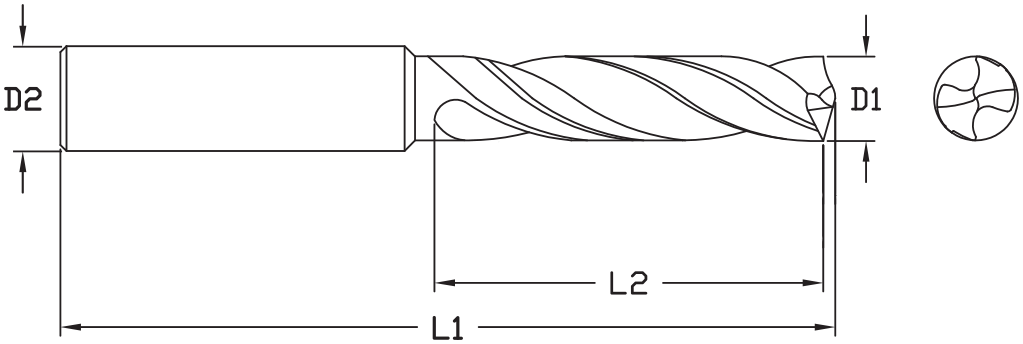

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type
.1181 CXDSS 0300AP 06615 3mm .1181 3mm 62mm 20mm ALtima® Plus Straight
.1200 CXDSS1200AP 06616 #31 .1200 1/8 2.4400 .787 ALtima® Plus Straight
.1220 CXDSS 0310AP 06617 3.1mm .1220 4mm 62mm 20mm ALtima® Plus Straight
.1250 CXDSS1250AP 06618 1/8 .1250 1/8 2.4400 .787 ALtima® Plus Straight
.1260 CXDSS 0320AP 06619 3.2mm .1260 4mm 62mm 20mm ALtima® Plus Straight
.1285 CXDSS1285AP 06620 #30 .1285 5/32 2.4400 .787 ALtima® Plus Straight
.1299 CXDSS 0330AP 06621 3.3mm .1299 4mm 62mm 20mm ALtima® Plus Straight
.1339 CXDSS 0340AP 06622 3.4mm .1339 4mm 62mm 20mm ALtima® Plus Straight
.1360 CXDSS1360AP 06623 #29 .1360 5/32 2.4400 .787 ALtima® Plus Straight
.1378 CXDSS 0350AP 06624 3.5mm .1378 4mm 62mm 20mm ALtima® Plus Straight
.1406 CXDSS1406AP 06625 9/64 .1406 5/32 2.4400 .787 ALtima® Plus Straight
.1417 CXDSS 0360AP 06626 3.6mm .1417 4mm 62mm 20mm ALtima® Plus Straight
.1457 CXDSS 0370AP 06627 3.7mm .1457 4mm 62mm 20mm ALtima® Plus Straight
.1496 CXDSS 0380AP 06628 3.8mm .1496 4mm 66mm 24mm ALtima® Plus Straight
.1520 CXDSS1520AP 06629 #24 .1520 5/32 2.6000 .945 ALtima® Plus Straight
.1535 CXDSS 0390AP 06630 3.9mm .1535 4mm 66mm 24mm ALtima® Plus Straight
.1562 CXDSS1562AP 06631 5/32 .1562 5/32 2.6000 .945 ALtima® Plus Straight
.1575 CXDSS 0400AP 06632 4mm .1575 4mm 66mm 24mm ALtima® Plus Straight
.1590 CXDSS1590AP 06633 #21 .1590 3/16 2.6000 .945 ALtima® Plus Straight
.1614 CXDSS 0410AP 06634 4.1mm .1614 5mm 66mm 24mm ALtima® Plus Straight
.1654 CXDSS 0420AP 06635 4.2mm .1654 5mm 66mm 24mm ALtima® Plus Straight
.1693 CXDSS 0430AP 06636 4.3mm .1693 5mm 66mm 24mm ALtima® Plus Straight
.1719 CXDSS1719AP 06637 11/64 .1719 3/16 2.6000 .945 ALtima® Plus Straight
.1732 CXDSS 0440AP 06638 4.4mm .1732 5mm 66mm 24mm ALtima® Plus Straight
.1772 CXDSS 0450AP 06639 4.5mm .1772 5mm 66mm 24mm ALtima® Plus Straight
.1811 CXDSS 0460AP 06640 4.6mm .1811 5mm 66mm 24mm ALtima® Plus Straight
.1850 CXDSS 0470AP 06641 4.7mm .1850 5mm 66mm 24mm ALtima® Plus Straight
.1875 CXDSS1875AP 06642 3/16 .1875 3/16 2.6000 1.102 ALtima® Plus Straight
.1890 CXDSS 0480AP 06643 4.8mm .1890 5mm 66mm 28mm ALtima® Plus Straight
.1929 CXDSS 0490AP 06644 4.9mm .1929 5mm 66mm 28mm ALtima® Plus Straight
.1968 CXDSS 0500AP 06645 5mm .1968 5mm 66mm 28mm ALtima® Plus Straight
.2008 CXDSS 0510AP 06646 5.1mm .2008 6mm 66mm 28mm ALtima® Plus Straight
.2031 CXDSS2031AP 06647 13/64 .2031 1/4 2.5980 1.102 ALtima® Plus Straight
.2047 CXDSS 0520AP 06648 5.2mm .2047 6mm 66mm 28mm ALtima® Plus Straight
.2087 CXDSS 0530AP 06649 5.3mm .2087 6mm 66mm 28mm ALtima® Plus Straight
.2126 CXDSS 0540AP 06650 5.4mm .2126 6mm 66mm 28mm ALtima® Plus Straight
.2165 CXDSS 0550AP 06651 5.5mm .2165 6mm 66mm 28mm ALtima® Plus Straight
.2187 CXDSS2187AP 06652 7/32 .2187 1/4 2.5980 1.102 ALtima® Plus Straight
.2205 CXDSS 0560AP 07091 5.6mm .2205 6mm 66mm 28mm ALtima® Plus Straight
.2210 CXDSS2210AP 06653 #2 .2210 1/4 2.5980 1.102 ALtima® Plus Straight
.2244 CXDSS 0570AP 06654 5.7mm .2244 6mm 66mm 28mm ALtima® Plus Straight
.2283 CXDSS 0580AP 06655 5.8mm .2283 6mm 66mm 28mm ALtima® Plus Straight
.2323 CXDSS 0590AP 06656 5.9mm .2323 6mm 66mm 28mm ALtima® Plus Straight
.2344 CXDSS2344AP 06657 15/64 .2344 1/4 2.5980 1.102 ALtima® Plus Straight
.2362 CXDSS 0600AP 06658 6mm .2362 6mm 66mm 28mm ALtima® Plus Straight
.2402 CXDSS 0610AP 06659 6.1mm .2402 8mm 79mm 34mm ALtima® Plus Straight
.2420 CXDSS2420AP 06660 C .2420 1/4 3.1100 1.339 ALtima® Plus Straight
.2441 CXDSS 0620AP 06661 6.2mm .2441 8mm 79mm 34mm ALtima® Plus Straight
.2460 CXDSS2460AP 06662 D .2460 1/4 3.1100 1.339 ALtima® Plus Straight
.2480 CXDSS 0630AP 06663 6.3mm .2480 8mm 79mm 34mm ALtima® Plus Straight
.2500 CXDSS2500AP 06664 1/4 .2500 1/4 3.1100 1.339 ALtima® Plus Straight
.2520 CXDSS 0640AP 06665 6.4mm .2520 8mm 79mm 34mm ALtima® Plus Straight
.2559 CXDSS 0650AP 06666 6.5mm .2559 8mm 79mm 34mm ALtima® Plus Straight
.2570 CXDSS2570AP 06667 F .2570 5/16 3.1100 1.339 ALtima® Plus Straight
.2598 CXDSS 0660AP 06668 6.6mm .2598 8mm 79mm 34mm ALtima® Plus Straight
.2610 CXDSS2610AP 06669 G .2610 5/16 3.1100 1.339 ALtima® Plus Straight
.2638 CXDSS 0670AP 06670 6.7mm .2638 8mm 79mm 34mm ALtima® Plus Straight
.2656 CXDSS2656AP 06671 17/64 .2656 5/16 3.1100 1.339 ALtima® Plus Straight
.2677 CXDSS 0680AP 06672 6.8mm .2677 8mm 79mm 34mm ALtima® Plus Straight
.2717 CXDSS 0690AP 06673 6.9mm .2717 8mm 79mm 34mm ALtima® Plus Straight
.2756 CXDSS 0700AP 06674 7mm .2756 8mm 79mm 34mm ALtima® Plus Straight
.2795 CXDSS 0710AP 06675 7.1mm .2795 8mm 79mm 41mm ALtima® Plus Straight
.2812 CXDSS2812AP 06676 9/32 .2812 5/16 3.1100 1.614 ALtima® Plus Straight
.2835 CXDSS 0720AP 06677 7.2mm .2835 8mm 79mm 41mm ALtima® Plus Straight
.2874 CXDSS 0730AP 06678 7.3mm .2874 8mm 79mm 41mm ALtima® Plus Straight
.2913 CXDSS 0740AP 06679 7.4mm .2913 8mm 79mm 41mm ALtima® Plus Straight
.2953 CXDSS 0750AP 06680 7.5mm .2953 8mm 79mm 41mm ALtima® Plus Straight
.2969 CXDSS2969AP 06681 19/64 .2969 5/16 3.1100 1.614 ALtima® Plus Straight
.2992 CXDSS 0760AP 06682 7.6mm .2992 8mm 79mm 41mm ALtima® Plus Straight
.3031 CXDSS 0770AP 06683 7.7mm .3031 8mm 79mm 41mm ALtima® Plus Straight
.3071 CXDSS 0780AP 06684 7.8mm .3071 8mm 79mm 41mm ALtima® Plus Straight
.3110 CXDSS 0790AP 06685 7.9mm .3110 8mm 79mm 41mm ALtima® Plus Straight
.3125 CXDSS3125AP 06686 5/16 .3125 5/16 3.1100 1.614 ALtima® Plus Straight
.3150 CXDSS 0800AP 06687 8mm .3150 8mm 79mm 41mm ALtima® Plus Straight
.3189 CXDSS 0810AP 06688 8.1mm .3189 10mm 89mm 47mm ALtima® Plus Straight
.3228 CXDSS 0820AP 06689 8.2mm .3228 10mm 89mm 47mm ALtima® Plus Straight
.3268 CXDSS 0830AP 06690 8.3mm .3268 10mm 89mm 47mm ALtima® Plus Straight
.3281 CXDSS3281AP 06691 21/64 .3281 3/8 3.5040 1.850 ALtima® Plus Straight
.3307 CXDSS 0840AP 06692 8.4mm .3307 10mm 89mm 47mm ALtima® Plus Straight
.3320 CXDSS3320AP 06693 Q .3320 3/8 3.5040 1.850 ALtima® Plus Straight
.3346 CXDSS 0850AP 06694 8.5mm .3346 10mm 89mm 47mm ALtima® Plus Straight
.3386 CXDSS 0860AP 06695 8.6mm .3386 10mm 89mm 47mm ALtima® Plus Straight
.3425 CXDSS 0870AP 06696 8.7mm .3425 10mm 89mm 47mm ALtima® Plus Straight
.3438 CXDSS3438AP 06697 11/32 .3438 3/8 3.5040 1.850 ALtima® Plus Straight
.3504 CXDSS 0890AP 06699 8.9mm .3504 10mm 89mm 47mm ALtima® Plus Straight
.3543 CXDSS 0900AP 06700 9mm .3543 10mm 89mm 47mm ALtima® Plus Straight
.3565 CXDSS 0880AP 06698 8.8mm .3565 10mm 89mm 47mm ALtima® Plus Straight
.3583 CXDSS 0910AP 06701 9.1mm .3583 10mm 89mm 47mm ALtima® Plus Straight
.3594 CXDSS3594AP 06702 23/64 .3594 3/8 3.5040 1.850 ALtima® Plus Straight
.3622 CXDSS 0920AP 06703 9.2mm .3622 10mm 89mm 47mm ALtima® Plus Straight
.3642 CXDSS 0925AP 06704 9.25mm .3642 10mm 89mm 47mm ALtima® Plus Straight
.3661 CXDSS 0930AP 06705 9.3mm .3661 10mm 89mm 47mm ALtima® Plus Straight
.3701 CXDSS 0940AP 06706 9.4mm .3701 10mm 89mm 47mm ALtima® Plus Straight
.3740 CXDSS 0950AP 06707 9.5mm .3740 10mm 89mm 47mm ALtima® Plus Straight
.3750 CXDSS3750AP 06708 3/8 .3750 3/8 3.5040 1.850 ALtima® Plus Straight
.3780 CXDSS 0960AP 06709 9.6mm .3780 10mm 89mm 47mm ALtima® Plus Straight
.3819 CXDSS 0970AP 06710 9.7mm .3819 10mm 89mm 47mm ALtima® Plus Straight
.3858 CXDSS 0980AP 06711 9.8mm .3858 10mm 89mm 47mm ALtima® Plus Straight
.3898 CXDSS 0990AP 06712 9.9mm .3898 10mm 89mm 47mm ALtima® Plus Straight
.3906 CXDSS3906AP 06713 25/64 .3906 7/16 3.5040 1.850 ALtima® Plus Straight
.3937 CXDSS 1000AP 06714 10mm .3937 10mm 89mm 47mm ALtima® Plus Straight
.3976 CXDSS 1010AP 06715 10.1mm .3976 12mm 102mm 55mm ALtima® Plus Straight
.4016 CXDSS 1020AP 06716 10.2mm .4016 12mm 102mm 55mm ALtima® Plus Straight
.4055 CXDSS 1030AP 06717 10.3mm .4055 12mm 102mm 55mm ALtima® Plus Straight
.4062 CXDSS4062AP 06718 13/32 .4062 7/16 4.0160 2.165 ALtima® Plus Straight
.4094 CXDSS 1040AP 06719 10.4mm .4094 12mm 102mm 55mm ALtima® Plus Straight
.4134 CXDSS 1050AP 06720 10.5mm .4134 12mm 102mm 55mm ALtima® Plus Straight
.4173 CXDSS 1060AP 06721 10.6mm .4173 12mm 102mm 55mm ALtima® Plus Straight
.4213 CXDSS 1070AP 06722 10.7mm .4213 12mm 102mm 55mm ALtima® Plus Straight
.4219 CXDSS4219AP 06723 27/64 .4219 7/16 4.0160 2.165 ALtima® Plus Straight
.4252 CXDSS 1080AP 06724 10.8mm .4252 12mm 102mm 55mm ALtima® Plus Straight
.4291 CXDSS 1090AP 06725 10.9mm .4291 12mm 102mm 55mm ALtima® Plus Straight
.4331 CXDSS 1100AP 06726 11mm .4331 12mm 102mm 55mm ALtima® Plus Straight
.4370 CXDSS 1110AP 06727 11.1mm .4370 12mm 102mm 55mm ALtima® Plus Straight
.4375 CXDSS4375AP 06728 7/16 .4375 7/16 4.0160 2.165 ALtima® Plus Straight
.4409 CXDSS 1120AP 06729 11.2mm .4409 12mm 102mm 55mm ALtima® Plus Straight
.4449 CXDSS 1130AP 06730 11.3mm .4449 12mm 102mm 55mm ALtima® Plus Straight
.4488 CXDSS 1140AP 06731 11.4mm .4488 12mm 102mm 55mm ALtima® Plus Straight
.4527 CXDSS 1150AP 06732 11.5mm .4527 12mm 102mm 55mm ALtima® Plus Straight
.4567 CXDSS 1160AP 06733 11.6mm .4567 12mm 102mm 55mm ALtima® Plus Straight
.4606 CXDSS 1170AP 06734 11.7mm .4606 12mm 102mm 55mm ALtima® Plus Straight
.4646 CXDSS 1180AP 06735 11.8mm .4646 12mm 102mm 55mm ALtima® Plus Straight
.4685 CXDSS 1190AP 06736 11.9mm .4685 12mm 102mm 55mm ALtima® Plus Straight
.4688 CXDSS4688AP 06737 15/32 .4688 1/2 4.0160 2.165 ALtima® Plus Straight
.4724 CXDSS 1200AP 06738 12mm .4724 12mm 102mm 55mm ALtima® Plus Straight
.4764 CXDSS 1210AP 06739 12.1mm .4764 14mm 107mm 60mm ALtima® Plus Straight
.4844 CXDSS4844AP 06740 31/64 .4844 1/2 4.2130 2.362 ALtima® Plus Straight
.4921 CXDSS 1250AP 06741 12.5mm .4921 14mm 107mm 60mm ALtima® Plus Straight
.5000 CXDSS5000AP 06742 1/2 .5000 1/2 4.2130 2.362 ALtima® Plus Straight
.5039 CXDSS 1280AP 06743 12.8mm .5039 14mm 107mm 60mm ALtima® Plus Straight
.5051 CXDSS 1283AP 06744 12.83mm .5051 14mm 107mm 60mm ALtima® Plus Straight
.5079 CXDSS 1290AP 06745 12.9mm .5079 14mm 107mm 60mm ALtima® Plus Straight
.5118 CXDSS 1300AP 06746 13mm .5118 14mm 107mm 60mm ALtima® Plus Straight
.5156 CXDSS5156AP 06747 33/64 .5156 9/16 4.2130 2.362 ALtima® Plus Straight
.5312 CXDSS5312AP 06748 17/32 .5312 9/16 4.2130 2.362 ALtima® Plus Straight
.5315 CXDSS 1350AP 06750 13.5mm .5315 14mm 107mm 60mm ALtima® Plus Straight
.5394 CXDSS 1370AP 06751 13.7mm .5394 14mm 107mm 60mm ALtima® Plus Straight
.5469 CXDSS5469AP 06752 35/64 .5469 9/16 4.2130 2.362 ALtima® Plus Straight
.5512 CXDSS 1400AP 06753 14mm .5512 14mm 107mm 60mm ALtima® Plus Straight
.5625 CXDSS5625AP 06754 9/16 .5625 9/16 4.5280 2.559 ALtima® Plus Straight
.5709 CXDSS 1450AP 06755 14.5mm .5709 16mm 115mm 65mm ALtima® Plus Straight
.5787 CXDSS 1470AP 06756 14.7mm .5787 16mm 115mm 65mm ALtima® Plus Straight
.5905 CXDSS 1500AP 06757 15mm .5905 16mm 115mm 65mm ALtima® Plus Straight
.5938 CXDSS5938AP 06758 19/32 .5938 5/8 4.5280 2.559 ALtima® Plus Straight
.6024 CXDSS 1530AP 06759 15.3mm .6024 16mm 115mm 65mm ALtima® Plus Straight
.6102 CXDSS 1550AP 06760 15.5mm .6102 16mm 115mm 65mm ALtima® Plus Straight
.6181 CXDSS 1570AP 06761 15.7mm .6181 16mm 115mm 65mm ALtima® Plus Straight
.6250 CXDSS6250AP 06762 5/8 .6250 5/8 4.5280 2.559 ALtima® Plus Straight
.6299 CXDSS 1600AP 06763 16mm .6299 16mm 115mm 65mm ALtima® Plus Straight
.6331 CXDSS 1608AP 06764 16.08mm .6331 18mm 123mm 73mm ALtima® Plus Straight
.6417 CXDSS 1630AP 06765 16.3mm .6417 18mm 123mm 73mm ALtima® Plus Straight
.6496 CXDSS 1650AP 06766 16.5mm .6496 18mm 123mm 73mm ALtima® Plus Straight
.6562 CXDSS6562AP 06767 21/32 .6562 11/16 4.8400 2.874 ALtima® Plus Straight
.6693 CXDSS 1700AP 06768 17mm .6693 18mm 123mm 73mm ALtima® Plus Straight
.6875 CXDSS6875AP 06769 11/16 .6875 11/16 4.8400 2.874 ALtima® Plus Straight
.6890 CXDSS 1750AP 06770 17.5mm .6890 18mm 123mm 73mm ALtima® Plus Straight
.7087 CXDSS 1800AP 06771 18mm .7087 18mm 123mm 73mm ALtima® Plus Straight
.7283 CXDSS 1850AP 06772 18.5mm .7283 20mm 131mm 79mm ALtima® Plus Straight
.7500 CXDSS7500AP 06773 3/4 .7500 3/4 5.1600 3.110 ALtima® Plus Straight
.7543 CXDSS 1916AP 06774 19.16mm .7543 20mm 131mm 79mm ALtima® Plus Straight
.7579 CXDSS 1925AP 06775 19.25mm .7579 20mm 131mm 79mm ALtima® Plus Straight
.7598 CXDSS 1930AP 06776 19.3mm .7598 20mm 131mm 79mm ALtima® Plus Straight
.7677 CXDSS 1950AP 06777 19.5mm .7677 20mm 131mm 79mm ALtima® Plus Straight
.7874 CXDSS 2000AP 06778 20mm .7874 20mm 131mm 79mm ALtima® Plus Straight
