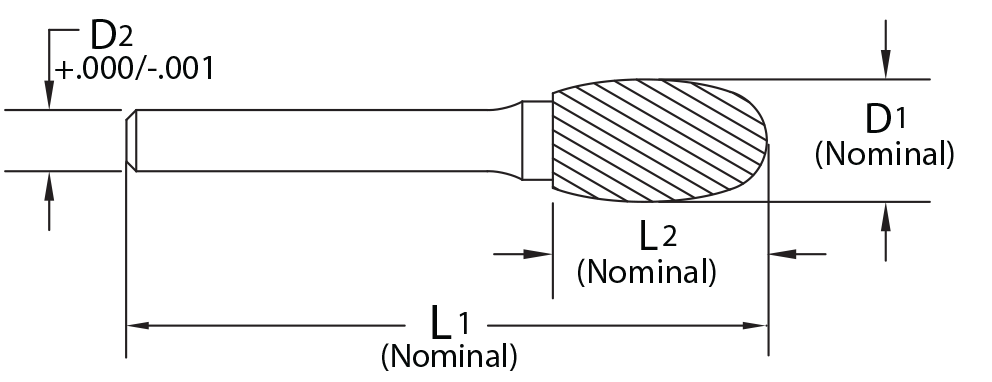

product drawing

Burs / 69SE

Solid Carbide Edge Hog® Bur

Ellipitcal Micro Sizes

SCTI SE
Solid carbide 1/4" sizes and below, brazed construction over 1/4"
Inch and metric sizes
Single, double, and fine cuts available

Materials

Series Attributes

Downloads

Speed/feed and bur type of cut and applications data

Product Range

	Tool No.	EDP	Diameter (DC)	Shank Diameter (DCONMS)	Overall Length (OAL)	Flute Length (APMX)	Specification	Type of Cut	Coating	Shank Type

.1181	69060020L3M	69814	3mm	3mm	76mm	5.6mm	SE-41L76M	Single	Uncoated	Straight
.1181	69060020M	69173	3mm	3mm	38mm	5.6mm	SE-41M	Single	Uncoated	Straight
.1181	69060027L3M	69816	3mm	3mm	76mm	5.6mm	SE-41L76M-D	Double Cut	Uncoated	Straight
.1181	69060027M	69181	3mm	3mm	38mm	5.6mm	SE-41M-D	Double Cut	Uncoated	Straight
.1181	69060030M	69189	3mm	3mm	38mm	5.6mm	SE-41M-F	Fine	Uncoated	Straight
.1181	69060026M	76558	3mm	3mm	38mm	5.6mm	SE-41M Diam	Std Diamond	Uncoated	Straight
.1250	69060020	69169	1/8	1/8	1-1/2	7/32	SE-41	Single	Uncoated	Straight
.1250	69060027	69177	1/8	1/8	1-1/2	7/32	SE-41-D	Double Cut	Uncoated	Straight
.1250	69060030	69185	1/8	1/8	1-1/2	7/32	SE-41-F	Fine	Uncoated	Straight
.1250	69060020L3	69813	1/8	1/8	3	7/32	SE-41L3	Single	Uncoated	Straight
.1250	69060027L3	69815	1/8	1/8	3	7/32	SE-41L3-D	Double Cut	Uncoated	Straight
.1250	69060026	76557	1/8	1/8	1-1/2	7/32	SE-41 Diam	Std Diamond	Uncoated	Straight
.1250	69060036	76559	1/8	1/8	1-1/2	7/32	SE-41-F Diam	Fine Diamond	Uncoated	Straight
.1250	69060020L2	15445	1/8	1/8	2	7/32	SE-41L2	Single	Uncoated	Straight
