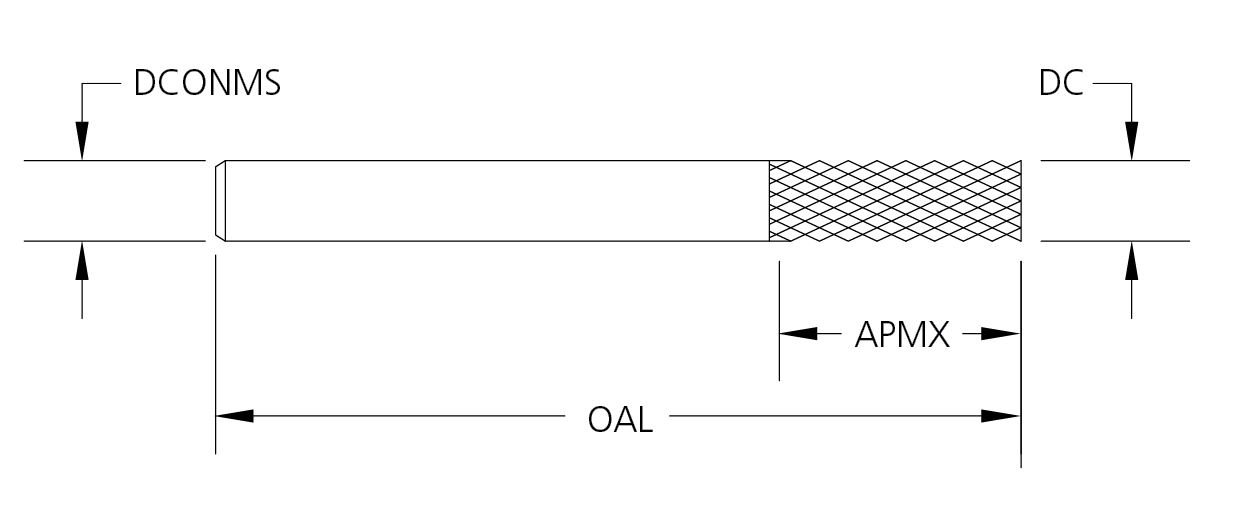

product photo product drawing

Routers / 230CE

Solid Carbide Diamond Grind Router Safe End, CERAedge® Coated
Designed for routing of glass-reinforced printed circuit boads, phenolic-epoxy and other highly abrasive materials.
  • Solid carbide
  • Down cut
  • Safe End
  • CERAedge® coated, CE=CERAedge® coated
  • Routers are available with color coded depth setting rings upon request
  • Material Applications: Non-Ferrous
*This series has been obsoleted.  Tools with stock will be available until the stock is depleted and cannot be returned.  Contact customer service if you require an obsolete tool as a special.

Series Attributes

Product Range

Tool No. EDP Diameter (DC) Diameter Dec Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Coating Tool Construction Material
.1181 23011810CE 90839 3.00mm .1181 3.00 38 12.50 CERAedge® Solid Carbide
.1875 23018750CE 90847 3/16 .1875 3/16 2 5/8 CERAedge® Solid Carbide
.1968 23019680CE 90850 5.00mm .1968 5.00 51 16.00 CERAedge® Solid Carbide
