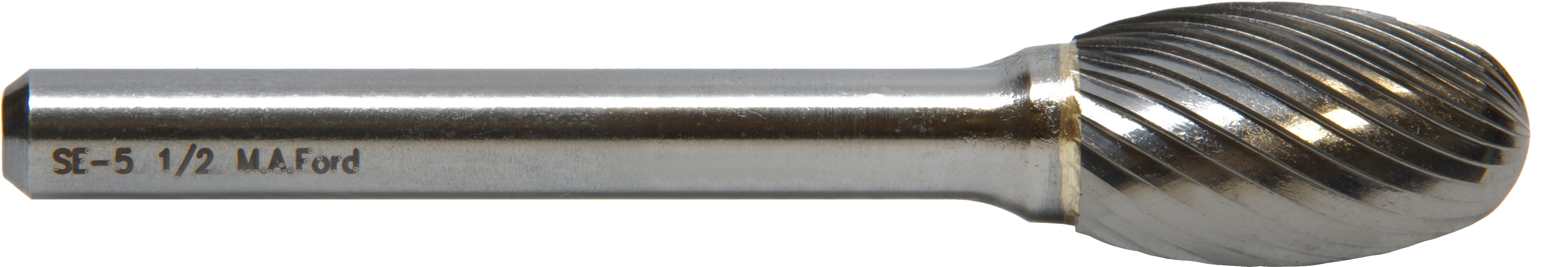

product photo

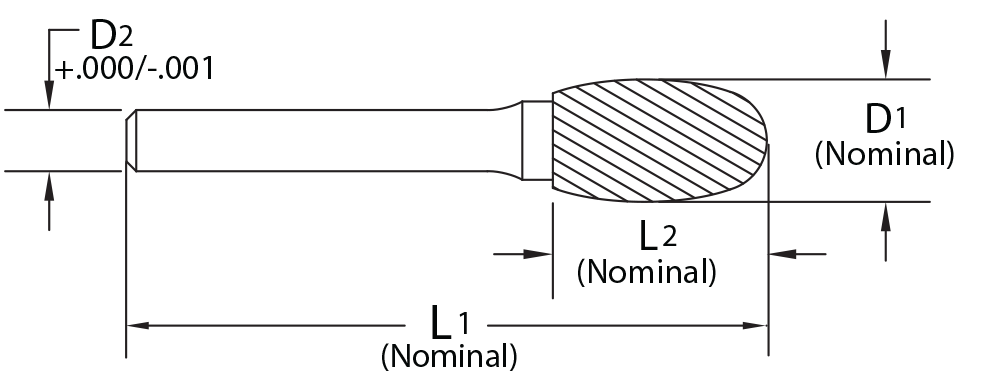

product drawing

Burs / 70SE

Solid Carbide Edge Hog® Bur

Ellipitcal Micro Sizes

SCTI SE
Solid carbide 1/4" sizes and below, brazed construction over 1/4"
Inch and metric sizes
Single, double, and fine cuts available

Materials

Series Attributes

Downloads

Speed/feed and bur type of cut and applications data

Product Range

	Tool No.	EDP	Diameter (D/D1)	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Specification	Type of Cut	Coating	Shank Type

.2500	70040020	70085	1/4	1/8	1-7/8	3/8	SE-51	Single	Uncoated	Straight
.2500	70040027	70093	1/4	1/8	1-7/8	3/8	SE-51-D	Double Cut	Uncoated	Straight
.2500	70040030	70101	1/4	1/8	1-7/8	3/8	SE-51-F	Fine	Uncoated	Straight
.2500	70040026	76673	1/4	1/8	1-7/8	3/8	SE-51 Diam	Std Diamond	Uncoated	Straight
.2520	70040020M	70089	6.4mm	3mm	48mm	9.5mm	SE-51M	Single	Uncoated	Straight
.2520	70040027M	70097	6.4mm	3mm	48mm	9.5mm	SE-51M-D	Double Cut	Uncoated	Straight
.2520	70040030M	70105	6.4mm	3mm	48mm	9.5mm	SE-51M-F	Fine	Uncoated	Straight
.2520	70040026M	76674	6.4mm	3mm	48mm	9.5mm	SE-51M Diam	Std Diamond	Uncoated	Straight
.2520	70040036M	76676	6.4mm	3mm	48mm	9.5mm	SE-51M-F Diam	Fine Diamond	Uncoated	Straight
